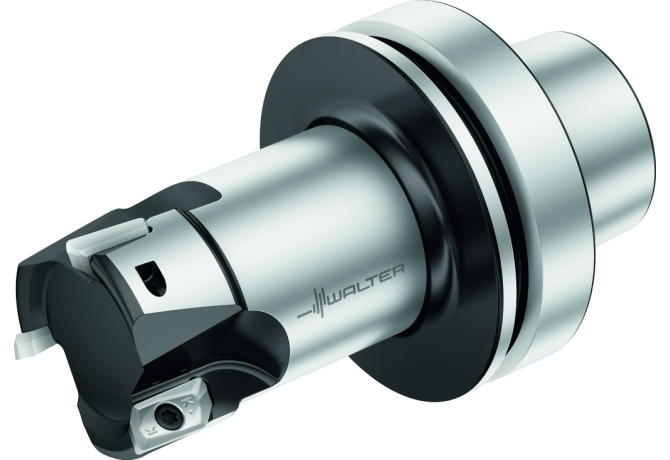

Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill M2331-050-H80F-04-15-MA

M2331-050-H80F-04-15-MA

Артикул: 7454314

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

15 mm

AZ Plunge depth maximum

1.59 mm

BD Body diameter

48.7 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

HSK080P0495

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Ramping milling cutters M2331

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

7454314

Interface codes

J6 / J61

ISO

HSK04C080P$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

110 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

HSK Hollow taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

080P

LOC-03 DCONMS Diameter

80 mm

LOC-03 ISO

HSK04C080P$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK080P0495

LPR Protruding length

110 mm

LU Usable length

80 mm

Name Identifying order number

M2331-050-H80F-04-15-MA

OAL Overall length

141.9 mm

RMPX Ramping angle maximum

5 Degree

RPMX Rotational speed maximum

34400 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

1.887 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
