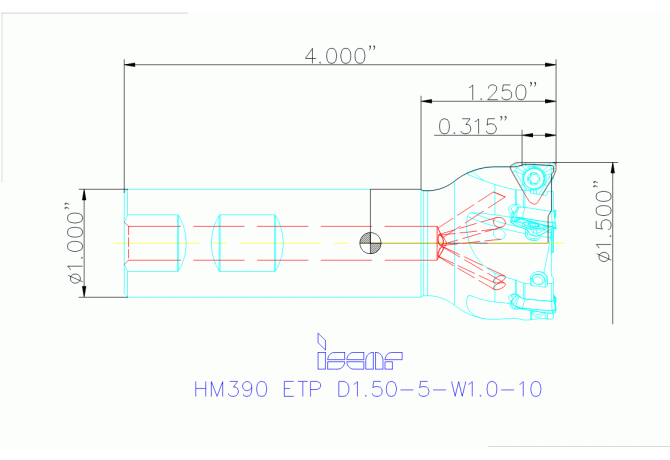

HM390 ETP D1.50-5-W1.0-10

HM390 ETP D1.50-5-W1.0-10 HM390 ETP D1.50-5-W1.0-10

HM390 ETP D1.50-5-W1.0-10

Iscar
Артикул: 3106633
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
60 Degree
A2A Clearance angle major Pos. A
11 Degree
APMX Depth of cut maximum
8.001 mm
B3A Inscribed circle diameter Pos. A
7.5 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
3.85 mm
CCONMS Connection count machine side
1
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
D4A Cutting edge angle major Pos. A
90 Degree
D6A Wiper edge length Pos. A
0.7 mm
DC Cutting diameter
38.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
8/23/2017
DIN
ZYL10001035
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
90\S\0 Endmills Carrying HM390 TPKT 1003 Triangular Inserts with 3 Helical Cutti
HAND Cutting direction
R - Right
ID Technical product number
3106633
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10001035
LPR Protruding length
31.75 mm
Name Identifying order number
HM390 ETP D1.50-5-W1.0-10
OAL Overall length
101.6 mm
RMPX Ramping angle maximum
1.6 Degree
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling
WT Weight of item
22.4536 kg
ZEFP Peripheral effective cutting edge count
5
