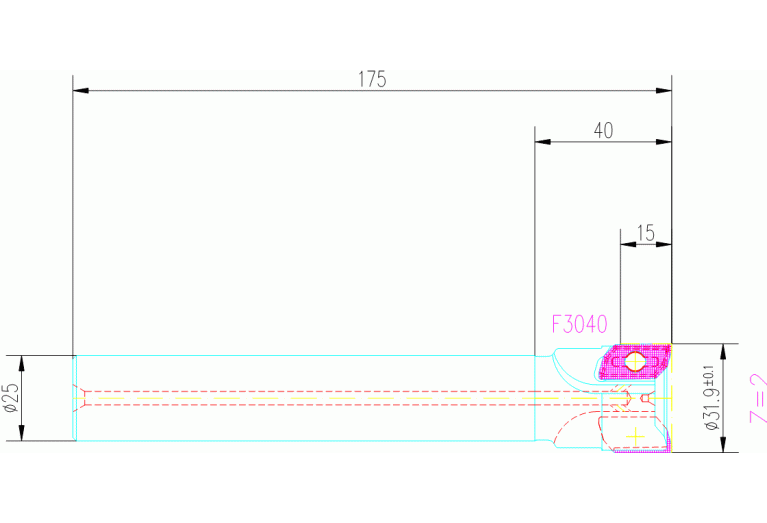

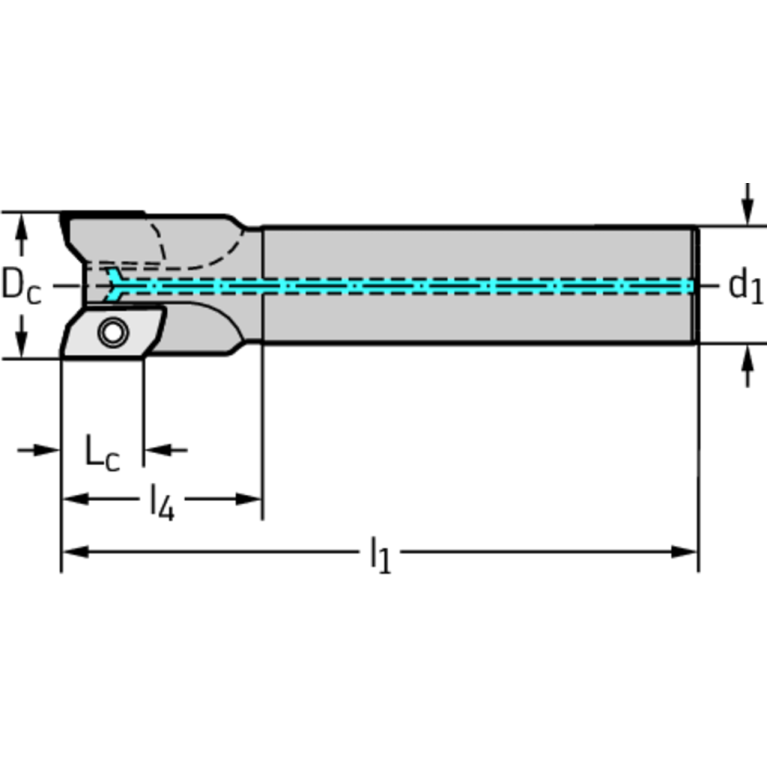

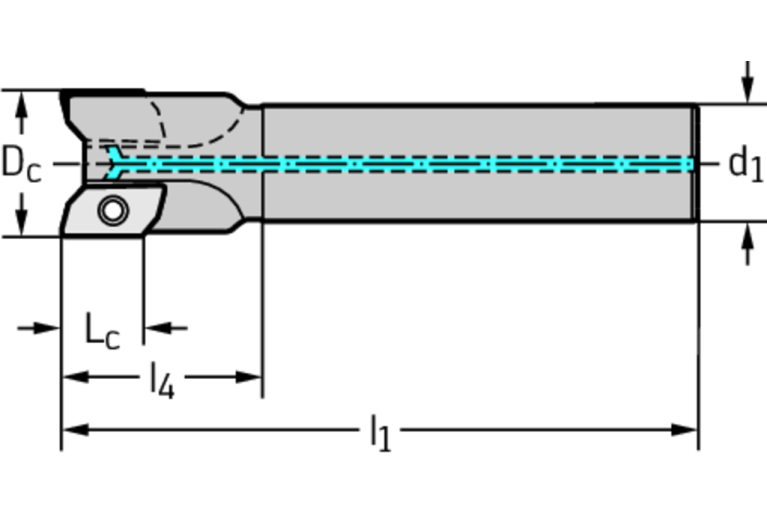

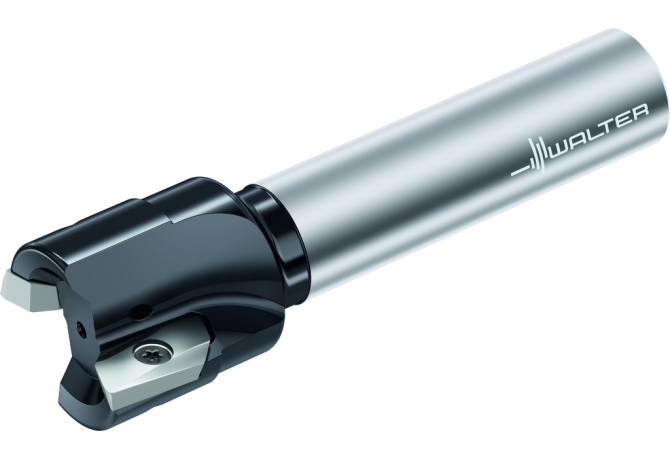

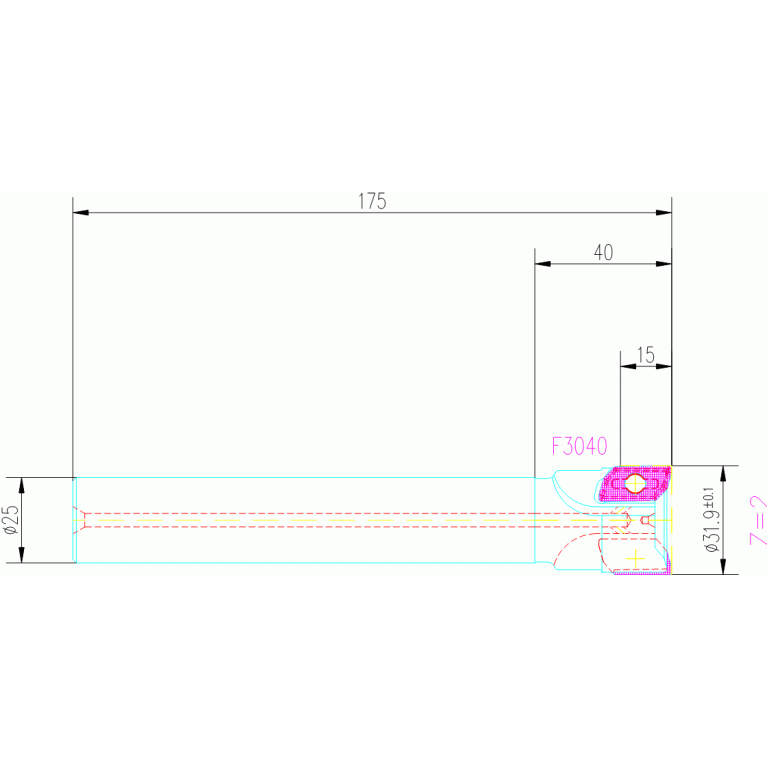

Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill F3040.Z25.032.Z02.15.L

F3040.Z25.032.Z02.15.L

Артикул: 5000130

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

15 mm

AZ Plunge depth maximum

1.4 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02500115

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Ramping milling cutters F3040

HAND Cutting direction

R - Right

ID Technical product number

5000130

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISO

ZYL01G2500$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

175 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 ISO

ZYL01G2500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500115

LPR Protruding length

40 mm

LU Usable length

40 mm

Name Identifying order number

F3040.Z25.032.Z02.15.L

OAL Overall length

175 mm

RMPX Ramping angle maximum

11 Degree

RPMX Rotational speed maximum

32200 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.638 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
