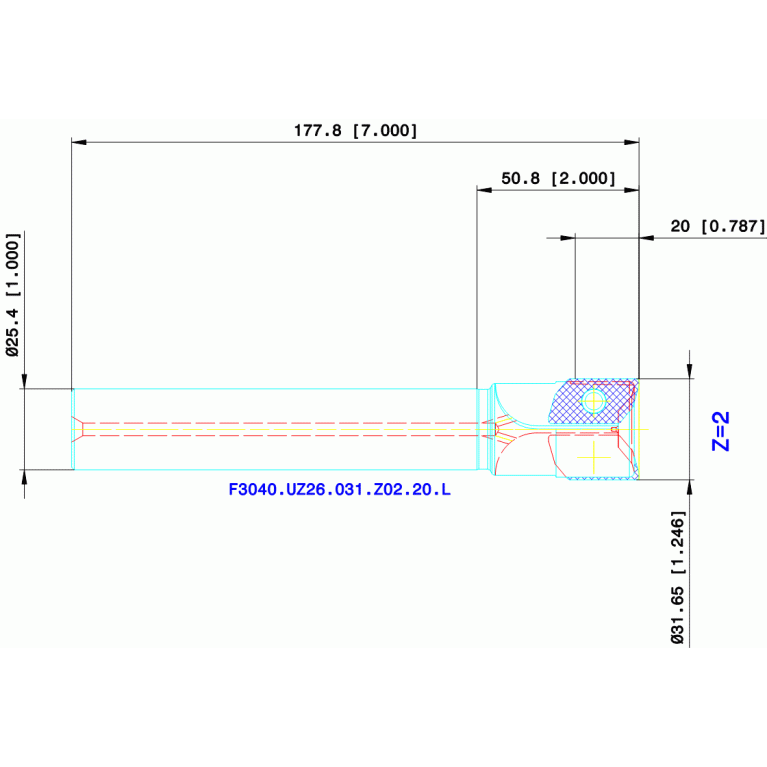

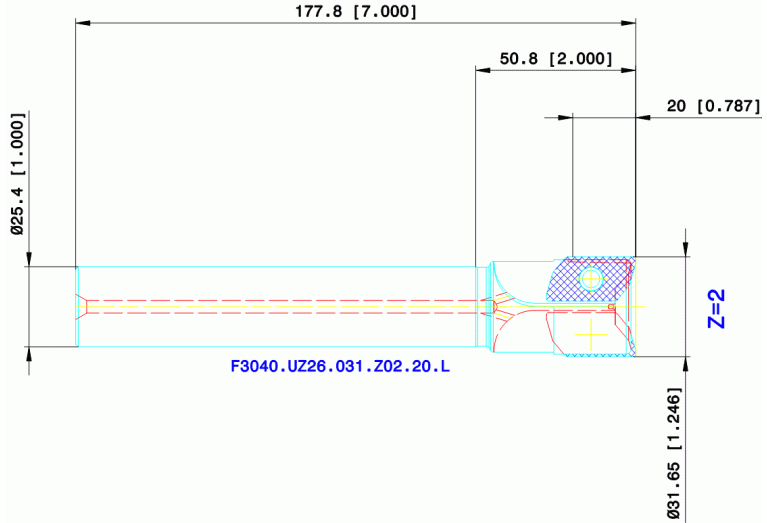

F3040.UZ26.031.Z02.20.L

Артикул: 5026241

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

19.98 mm

AZ Plunge depth maximum

1.55 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

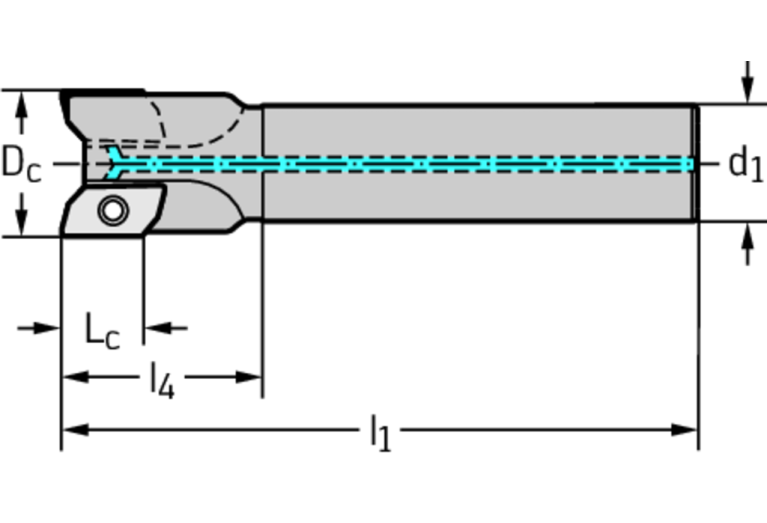

DC Cutting diameter

31.75 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL10000135

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Ramping milling cutters F3040

HAND Cutting direction

R - Right

ID Technical product number

5026241

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISO

ZYL01S1000$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

177.8 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 ISO

ZYL01S1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10000135

LPR Protruding length

50.8 mm

LU Usable length

50.8 mm

Name Identifying order number

F3040.UZ26.031.Z02.20.L

OAL Overall length

177.8 mm

RMPX Ramping angle maximum

8 Degree

RPMX Rotational speed maximum

32300 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.4 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
