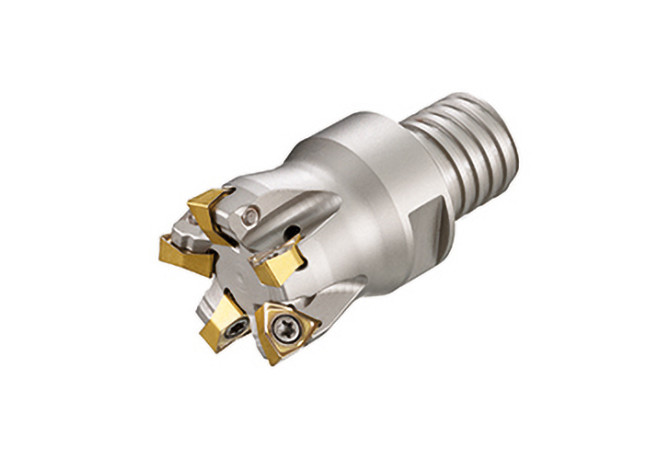

Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill 1WJ1D025032TUR00

1WJ1D025032TUR00

1WJ1D025032TUR00 1WJ1D025032TUR00 1WJ1D025032TUR00 1WJ1D025032TUR00

1WJ1D025032TUR00

Ingersoll
Артикул: 3062687
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric

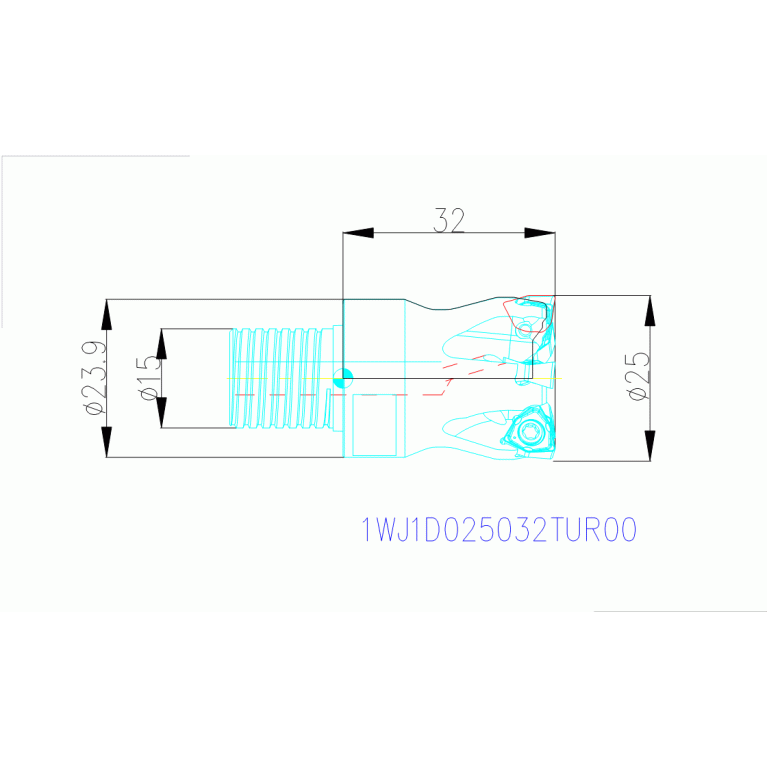

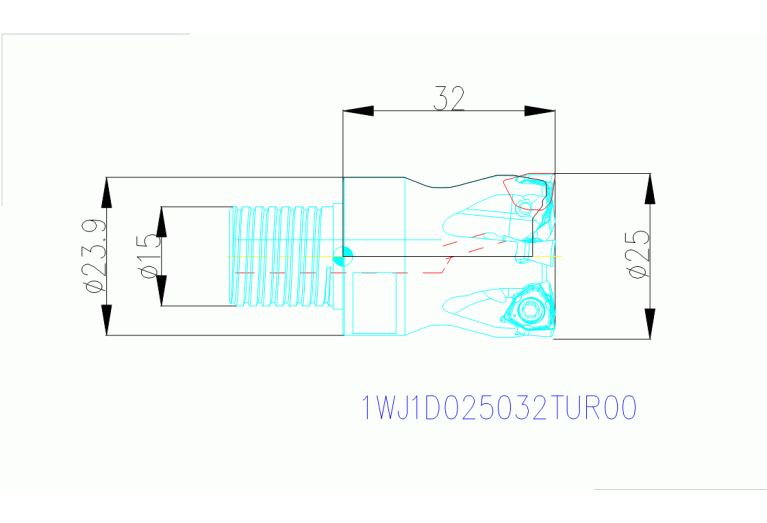

DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
SAI01500115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
End Mill 1WJ1D...
HAND Cutting direction
R - Right
ID Technical product number
3062687
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAI Screw mounting ISCAR
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0150
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAI01500115
Name Identifying order number
1WJ1D025032TUR00
OAL Overall length
49.1 mm
RMPX Ramping angle maximum
1.9 Degree
Working process
No working processes available
WT Weight of item
0.09 kg
ZEFP Peripheral effective cutting edge count
5
