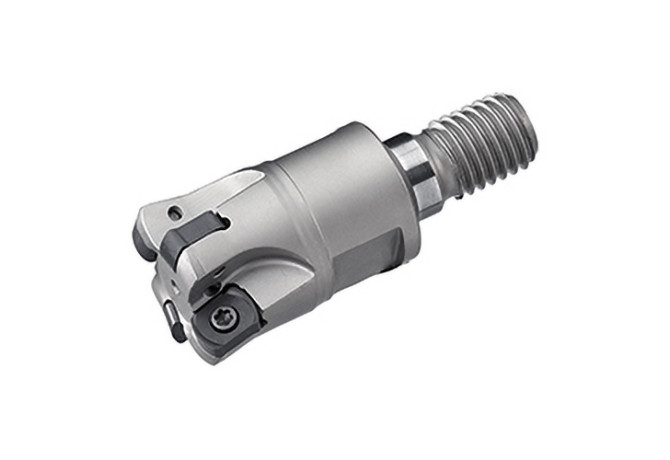

Главная Каталог продукции Toolunited 10 307-01 - Non-centre cutting single row end mill 1TG1F032040X8R01

1TG1F032040X8R01

1TG1F032040X8R01 1TG1F032040X8R01 1TG1F032040X8R01 1TG1F032040X8R01

1TG1F032040X8R01

Ingersoll
Артикул: 5893568
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
2
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric

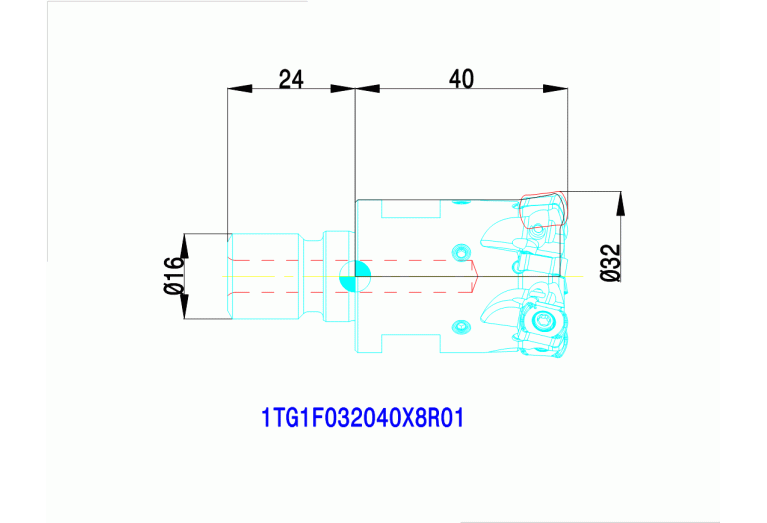

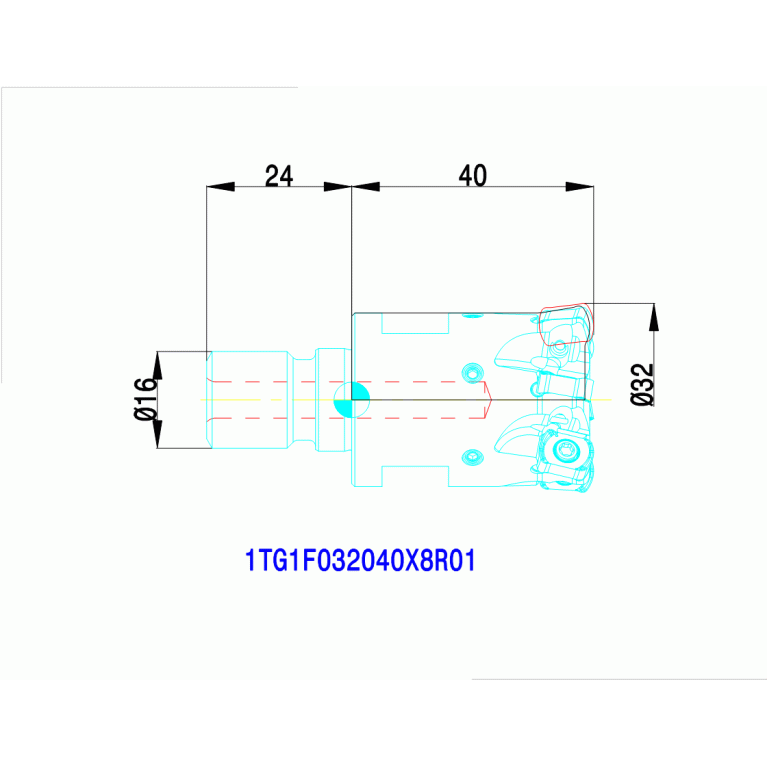

DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
MOD01600115
DN Neck diameter
29 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
High Feed Cutter 1TG1F...X
HAND Cutting direction
R - Right
ID Technical product number
5893568
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
MOD
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MOD01600115
Name Identifying order number
1TG1F032040X8R01
OAL Overall length
64 mm
RMPX Ramping angle maximum
1 Degree
Working process
No working processes available
WT Weight of item
0.21 kg
ZEFP Peripheral effective cutting edge count
6
