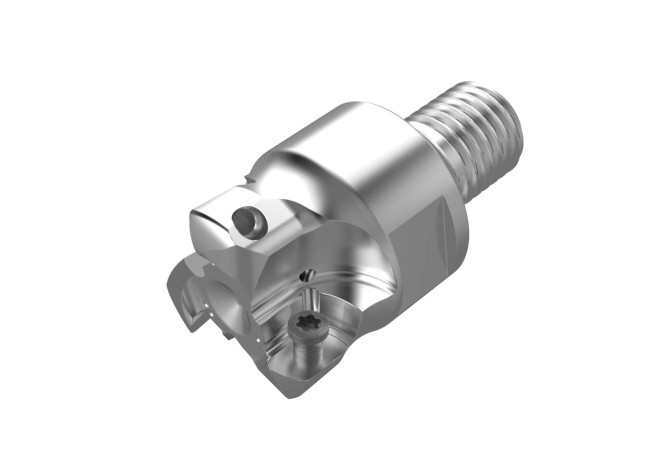

Главная Каталог продукции Toolunited 10 307-00 - End mill for indexable inserts unspecified R217.21-1632.RE-LP09.3A

R217.21-1632.RE-LP09.3A

R217.21-1632.RE-LP09.3A R217.21-1632.RE-LP09.3A R217.21-1632.RE-LP09.3A

R217.21-1632.RE-LP09.3A

SECO Tools
Артикул: 03212884
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
1.85 mm
BI Block index
1
CCONMS Connection count machine side
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

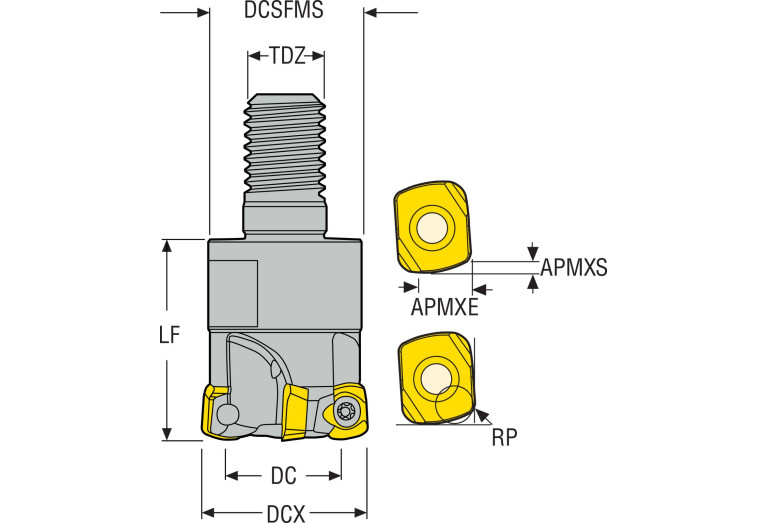

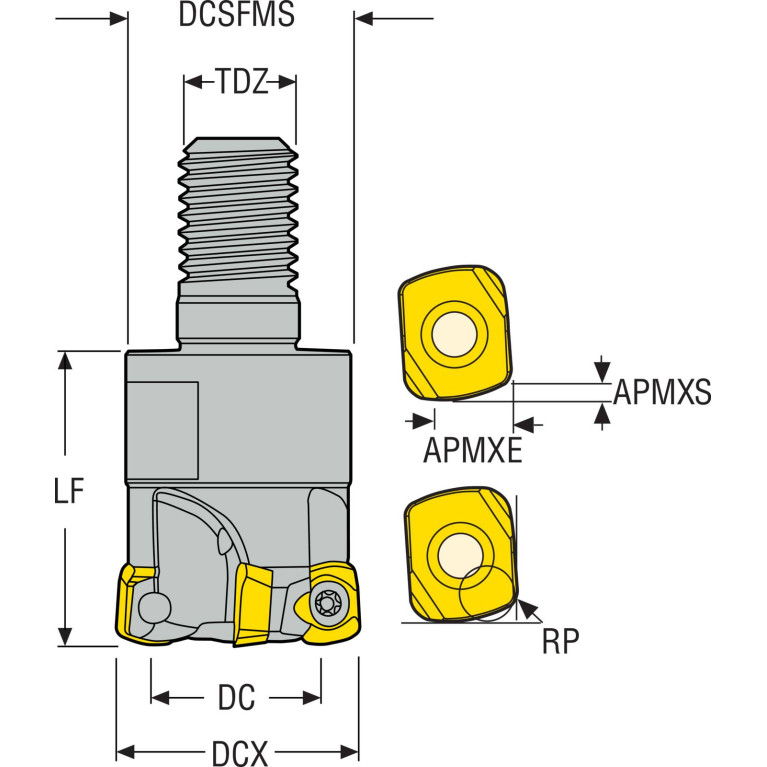

DC Cutting diameter
19.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SCM01600115
FamilyProducts
R217.21-1632.RE-LP09.3A
GAMF Rake angle radial
-5 Degree
GAMP Rake angle axial
5 Degree
HAND Cutting direction
R - Right
ID Technical product number
03212884
Interface codes
J6 /
ISYC Subclass
307-00 - End mill for indexable inserts unspecified
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-LP09T4 3R
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-LP09T4 3R
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SCM
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SCM01600115
Name Identifying order number
R217.21-1632.RE-LP09.3A

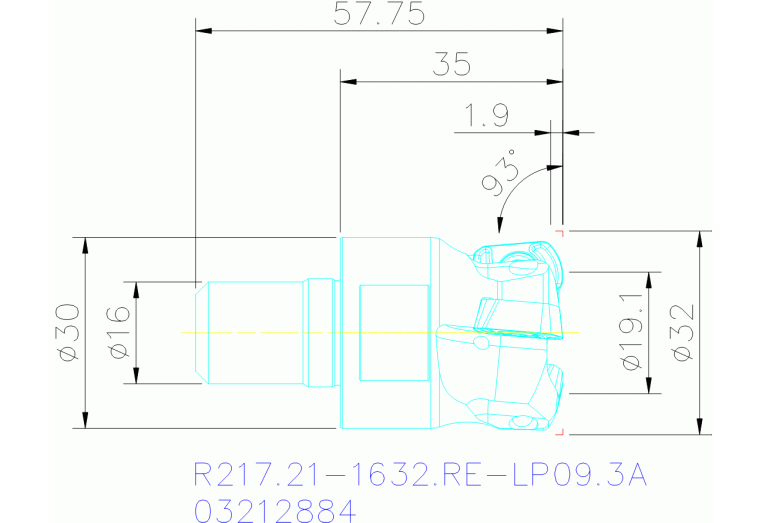

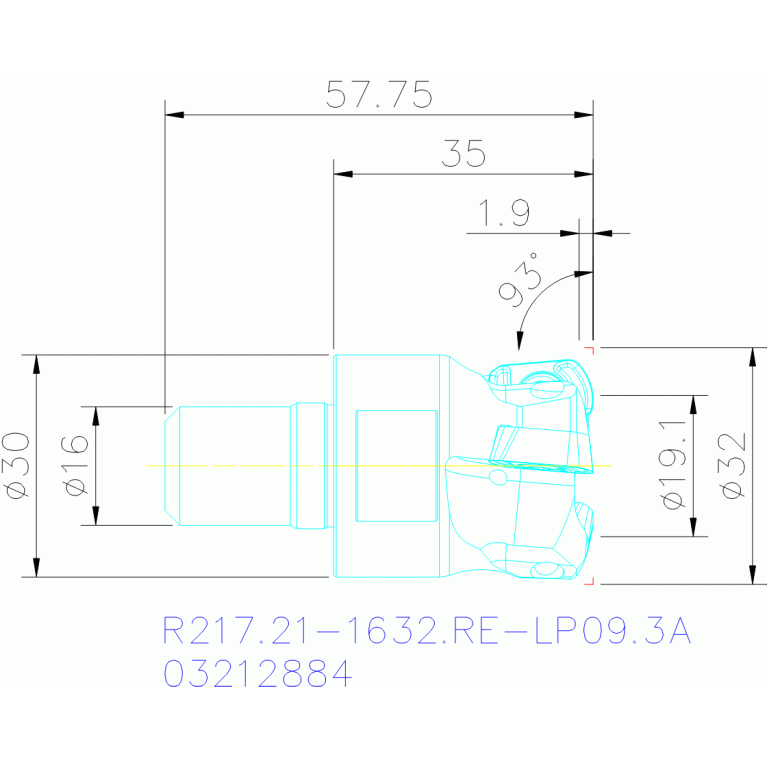

OAL Overall length
57.75 mm
RMPX Ramping angle maximum
4.8 Degree
RPMX Rotational speed maximum
31100 1/min
THSZMS Connection thread nominal size machine side
M16
Working process
No working processes available
WT Weight of item
0.199 kg
ZEFP Peripheral effective cutting edge count
3
