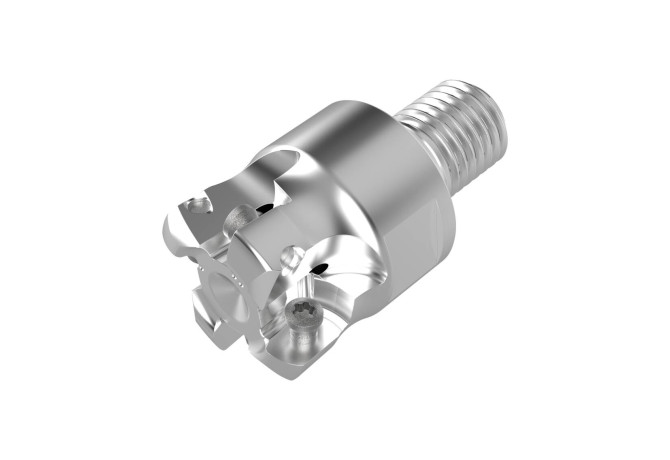

Главная Каталог продукции Toolunited 10 307-00 - End mill for indexable inserts unspecified R217.21-01.25-16RE-LP09-4A

R217.21-01.25-16RE-LP09-4A

Артикул: 03212902

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

1.87 mm

BI Block index

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

18.9 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SCM01600115

FamilyProducts

R217.21-01.25-16RE-LP09-4A

GAMF Rake angle radial

-8 Degree

GAMP Rake angle axial

2 Degree

HAND Cutting direction

R - Right

ID Technical product number

03212902

Interface codes

J6 /

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

LOC-01 BI Block index

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

SO-LP09T4 3R

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-LP09T4 3R

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SCM

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SCM01600115

Name Identifying order number

R217.21-01.25-16RE-LP09-4A

OAL Overall length

57.75 mm

RMPX Ramping angle maximum

4.9 Degree

RPMX Rotational speed maximum

31100 1/min

THSZMS Connection thread nominal size machine side

M16

Working process

No working processes available

WT Weight of item

0.2 kg

ZEFP Peripheral effective cutting edge count
