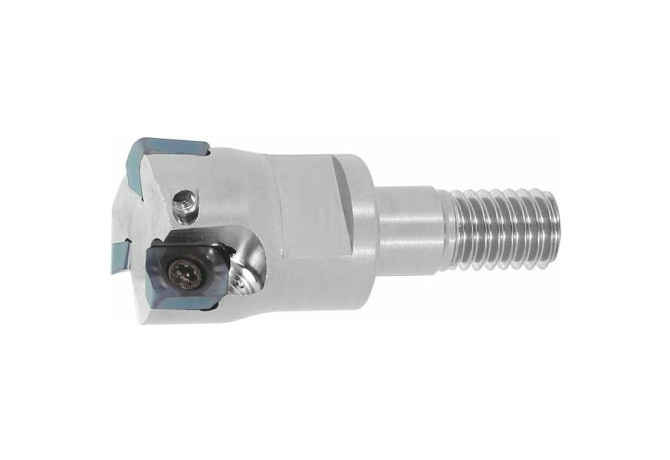

Главная Каталог продукции Toolunited 10 307-00 - End mill for indexable inserts unspecified 221943 14/3

221943 14/3

221943 14/3

Hoffmann Group

Артикул: 221943 14/3

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.5 mm

AZ Plunge depth maximum

1.7 mm

BD Body diameter

0 mm

BI Block index

1

CCONMS Connection count machine side

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

10.2 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

14 mm

DIN

SAD00600115

DN Neck diameter

11.2 mm

FamilyProducts

High feed rate milling cutter MFH micro

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

5 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

KAPR Tool cutting edge angle

93 Degree

LOC-01 BI Block index

1

LOC-01 MIID Master insert identification

LPGT010210ER

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

LP0102103R

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAD Screw mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAD00600115

LPR Protruding length

17 mm

LS Shank length

14.5 mm

LU Usable length

0.5 mm

MIID Master insert identification

LPGT010210ER

Name Identifying order number

221943 14/3

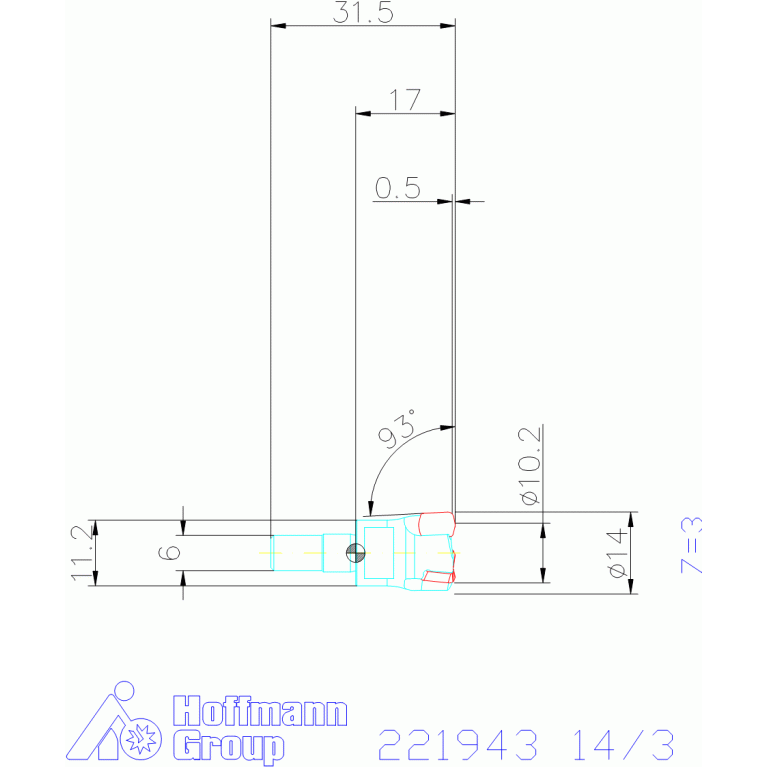

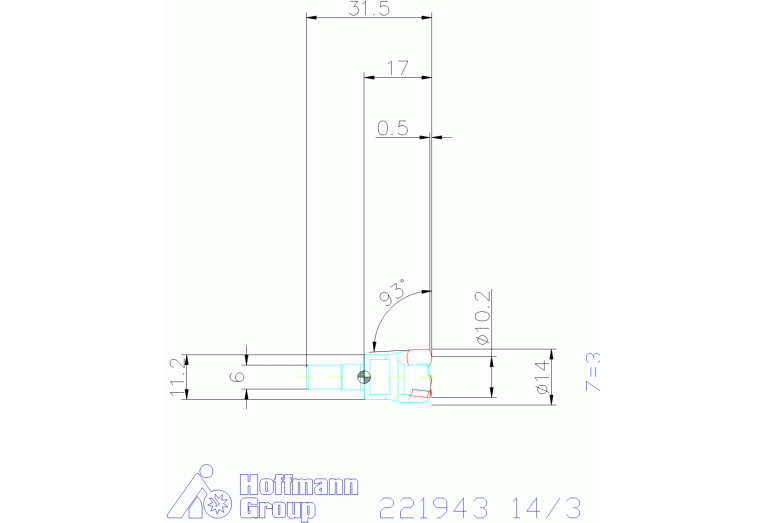

OAL Overall length

31.5 mm

RMPX Ramping angle maximum

1.5 Degree

THSZMS Connection thread nominal size machine side

M6x1.0

Working process

No working processes available

WT Weight of item

0.04 kg

ZEFF Face effective cutting edge count

3

ZEFP Peripheral effective cutting edge count

3
