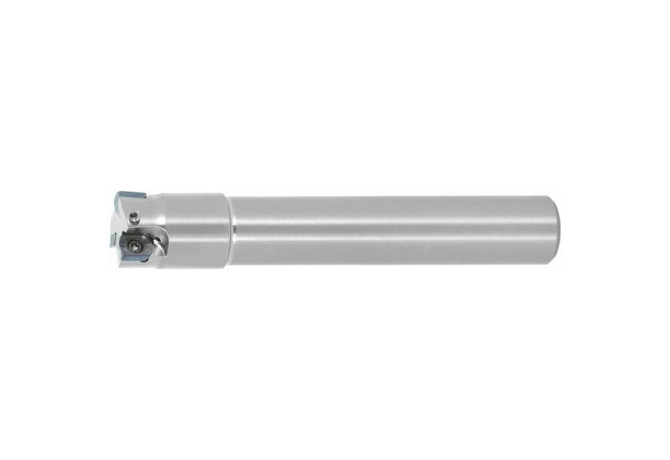

Главная Каталог продукции Toolunited 10 307-00 - End mill for indexable inserts unspecified 221941 14/3

221941 14/3

221941 14/3

Hoffmann Group

Артикул: 221941 14/3

В наличии

В корзину

Описание

Характеристики

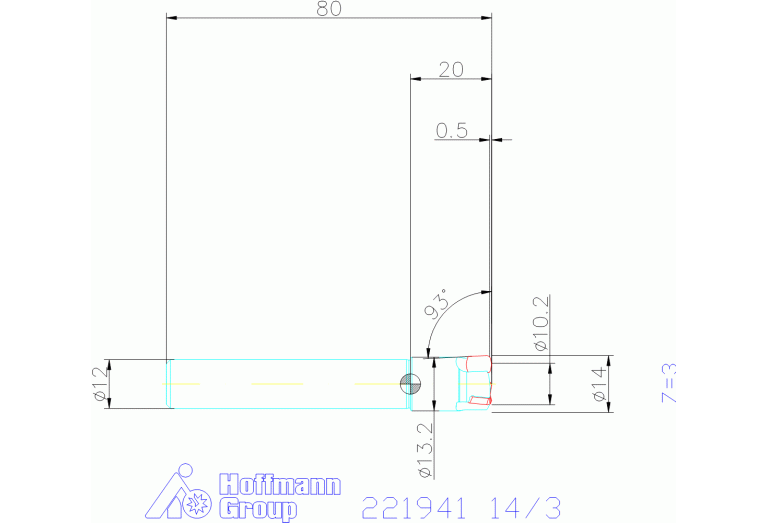

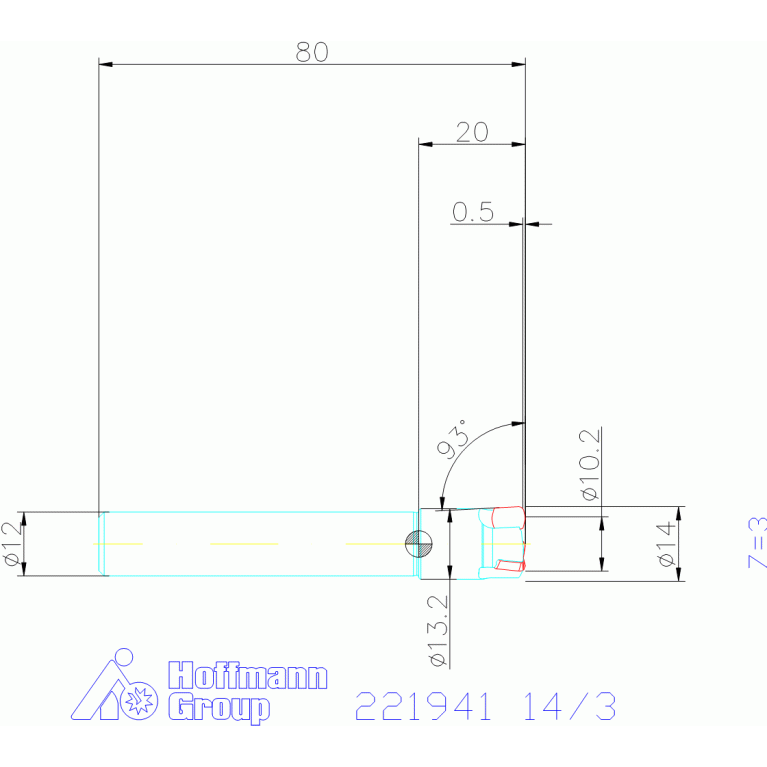

APMX Depth of cut maximum

0.5 mm

AZ Plunge depth maximum

1.7 mm

BD Body diameter

0 mm

BI Block index

1

CCONMS Connection count machine side

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

10.2 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

14 mm

DIN

ZYL01200115

DN Neck diameter

11.75 mm

FamilyProducts

High feed rate milling cutter MFH micro

GAMF Rake angle radial

3 Degree

GAMP Rake angle axial

5 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

KAPR Tool cutting edge angle

93 Degree

LF Functional length

80 mm

LH Head length

20 mm

LOC-01 BI Block index

1

LOC-01 MIID Master insert identification

LPGT010210ER

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

LP0102103R

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200115

LPR Protruding length

21 mm

LS Shank length

60 mm

LU Usable length

0.5 mm

MIID Master insert identification

LPGT010210ER

Name Identifying order number

221941 14/3

OAL Overall length

80 mm

RMPX Ramping angle maximum

1.5 Degree

Working process

No working processes available

WT Weight of item

0.07 kg

ZEFF Face effective cutting edge count

3

ZEFP Peripheral effective cutting edge count

3
