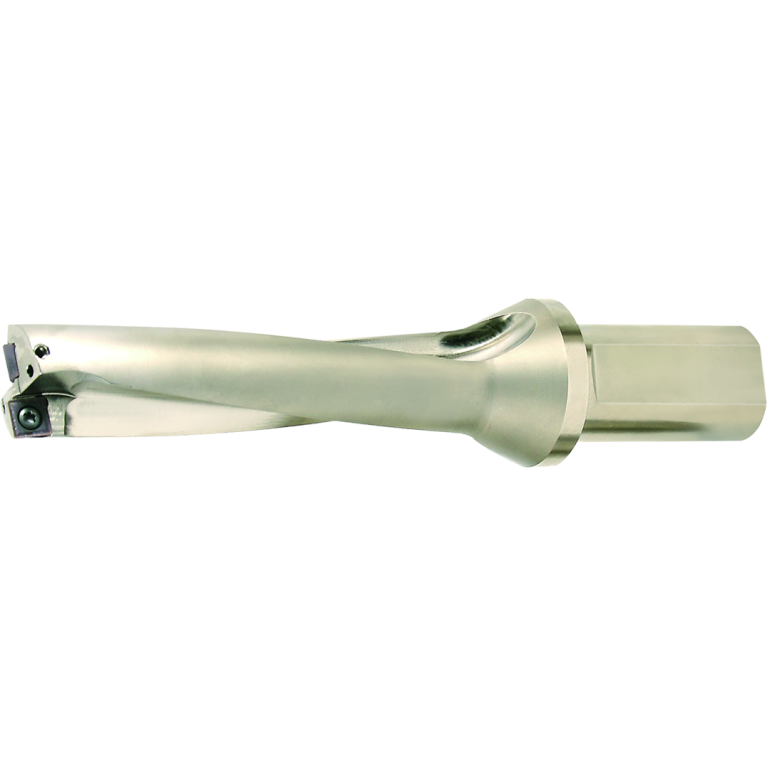

Главная Каталог продукции Toolunited 10 306-01 - Twist drill for indexable inserts ZTD02-210-XP25-SP06-02

ZTD02-210-XP25-SP06-02

ZTD02-210-XP25-SP06-02

Артикул: ZTD02-210-XP25-SP06-02

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A1B Cutting edge angle major Pos. B

90 Degree

A2A Clearance angle major Pos. A

11 Degree

A2B Clearance angle major Pos. B

11 Degree

B1A Cutting edge length Pos. A

6 mm

B1B Cutting edge length Pos. B

6 mm

B3A Inscribed circle diameter Pos. A

6 mm

B3B Inscribed circle diameter Pos. B

6 mm

BLDA Tool style code Position A

2

BLDB Tool style code Position B

2

C1A Insert thickness Pos. A

2.38 mm

C1B Insert thickness Pos. B

2.38 mm

CCONMS Connection count machine side

1

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.4 mm

D1B Corner radius Pos. B

0.4 mm

DC Cutting diameter minimum

21 mm

Delivery state valid from

0.35 kg

DF Flange diameter

32 mm

DIN

ZYL02501015

FamilyProducts

ZTD02 2xD

HAND Cutting direction

R - Right

ID Identifying order number

ZTD02-210-XP25-SP06-02

Interface codes

J6 /

ISYC Subclass

306-01 - Twist drill for indexable inserts

LOC-03 CCFMS Form

10

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501015

LS Shank length

56 mm

LU Usable length

47 mm

NUMBER INSERTS INSIDE Number of inserts inside

1

NUMBER INSERTS OUTSIDE Number of inserts outside

1

OAL Overall length

125 mm

SIG Point angle 1st step

180 Degree

Working process

BAB - Open by boring,BVB - Drilling

WT Weight of item

0.35 kg
