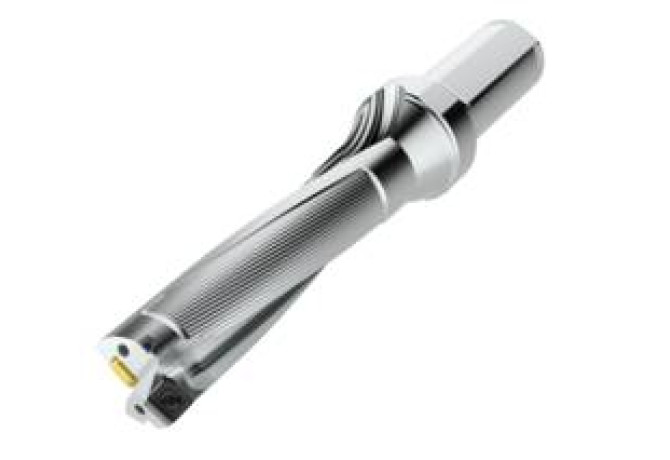

Главная Каталог продукции Toolunited 10 306-01 - Twist drill for indexable inserts SD524-37-148-40R7

SD524-37-148-40R7

SD524-37-148-40R7 SD524-37-148-40R7 SD524-37-148-40R7 SD524-37-148-40R7

SD524-37-148-40R7

Seco
Артикул: 03080366
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
11 Degree
A2B Clearance angle major Pos. B
7 Degree
B1A Cutting edge length Pos. A
11.509 mm
B1B Cutting edge length Pos. B
11.509 mm
B3A Inscribed circle diameter Pos. A
11.509 mm
B3B Inscribed circle diameter Pos. B
11.509 mm
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
C1A Insert thickness Pos. A
3.97 mm
C1B Insert thickness Pos. B
3.97 mm
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
COMPC Company code
SO - SECO Tools
D1B Corner radius Pos. B
0.8 mm
DC Cutting diameter minimum
37 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2018
DIN
ZYL04001005
FamilyProducts
SD524-37-148-40R7
HAND Cutting direction
R - Right
ID Technical product number
03080366
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
306-01 - Twist drill for indexable inserts
LF Functional length
178 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
SPGX11T3-C1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-SPGX11T3C
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SCGX11T308-MP
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SCGX11T308
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001005
LPR Protruding length
178 mm

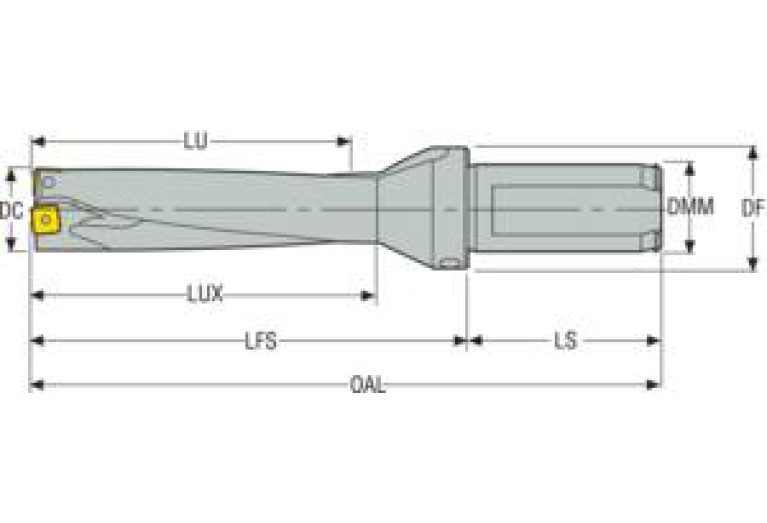

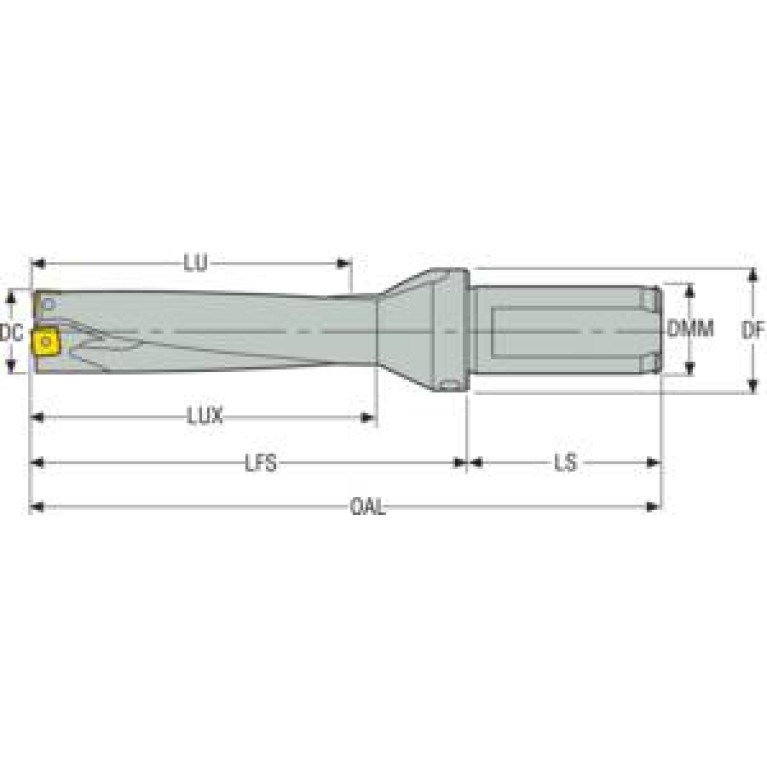

LS Shank length
68 mm
LU Usable length
153 mm
MIID Master insert identification
SPGX11T3-C1
Name Identifying order number
SD524-37-148-40R7
NOF Flute count
2
NUMBER INSERTS OUTSIDE Number of inserts outside
1

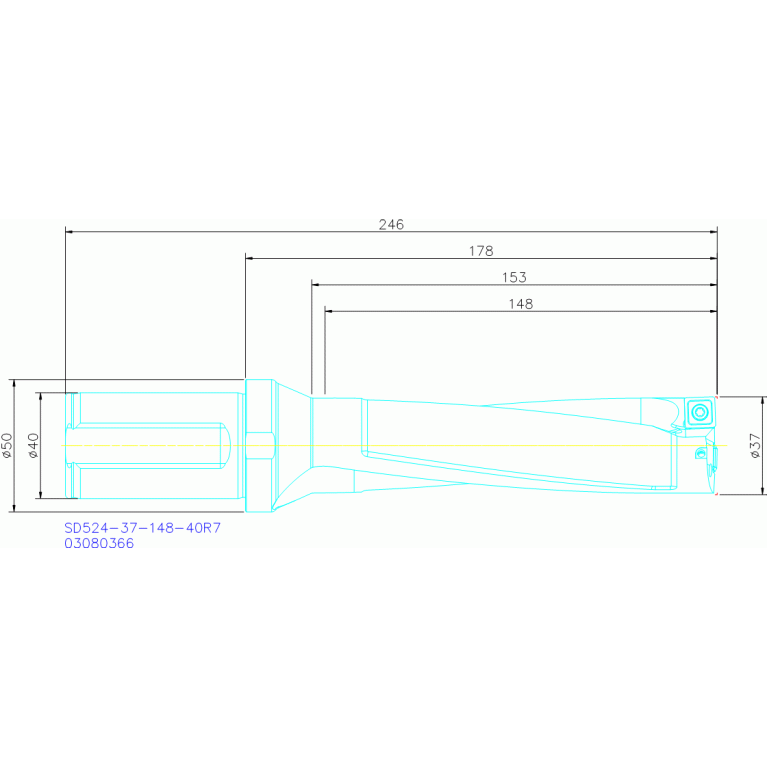

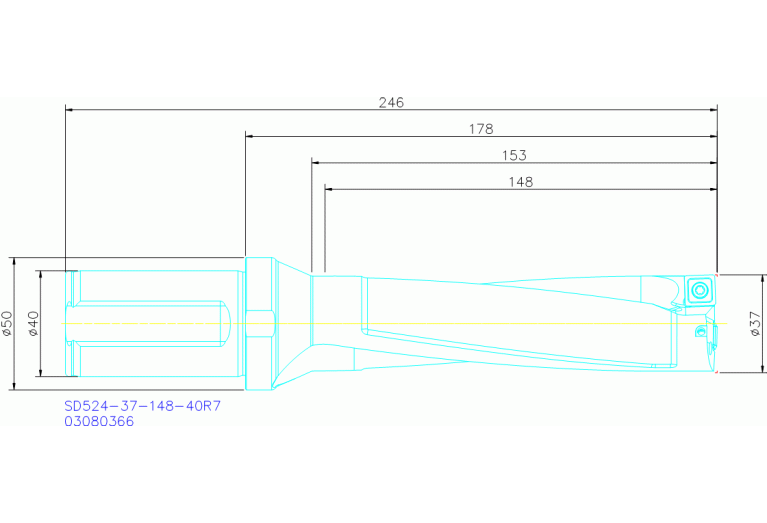

OAL Overall length
246 mm
SIG Point angle 1st step
176 Degree
Working process
BVB - Drilling
WT Weight of item
1.51 kg
Номер таблицы (BI) / Block index (BI)
1
