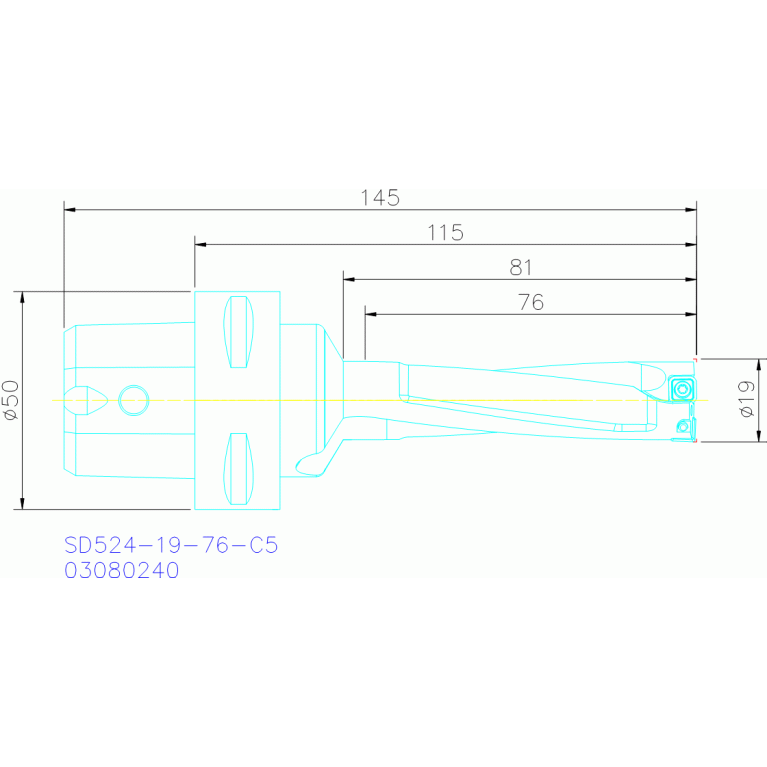

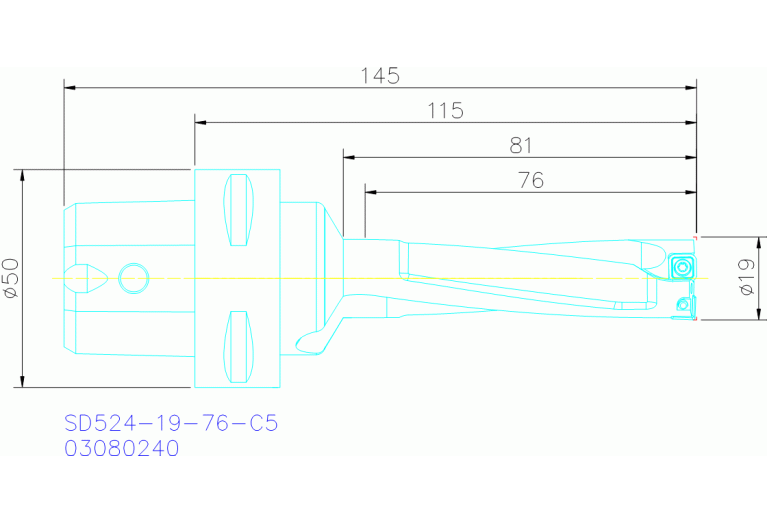

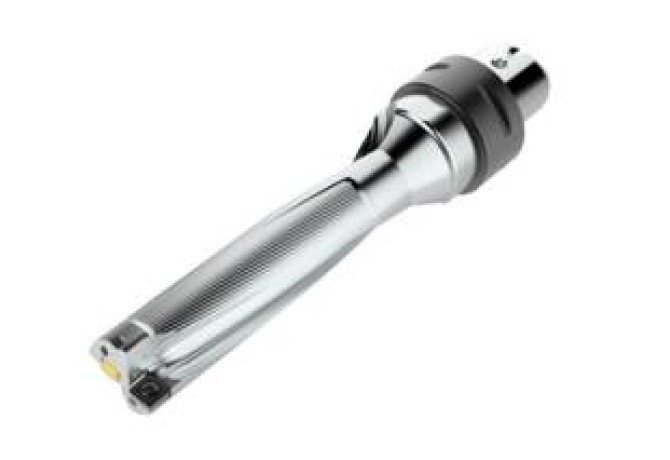

Главная Каталог продукции Toolunited 10 306-01 - Twist drill for indexable inserts SD524-19-76-C5

SD524-19-76-C5

SD524-19-76-C5

Seco

Артикул: 03080240

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A1B Cutting edge angle major Pos. B

90 Degree

A2A Clearance angle major Pos. A

11 Degree

A2B Clearance angle major Pos. B

7 Degree

B1A Cutting edge length Pos. A

6.35 mm

B1B Cutting edge length Pos. B

5.56 mm

B3A Inscribed circle diameter Pos. A

6.35 mm

B3B Inscribed circle diameter Pos. B

5.56 mm

BLDA Tool style code Position A

2

BLDB Tool style code Position B

2

C1A Insert thickness Pos. A

2.38 mm

C1B Insert thickness Pos. B

2.38 mm

CCONMS Connection count machine side

2

CEDC Cutting edge count

1

COMPC Company code

SO - SECO Tools

D1B Corner radius Pos. B

0.4 mm

DC Cutting diameter minimum

19 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

16.82 mm

Delivery state valid from

4/24/2018

DIN

CCS05000185

FamilyProducts

SD524-19-76-C5

HAND Cutting direction

R - Right

ID Technical product number

03080240

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

1

ISISO B Indicator for ISO cutting plate Pos.B

1

ISYC Subclass

306-01 - Twist drill for indexable inserts

LF Functional length

115 mm

LOC-01 BI Block index

1

LOC-01 MIID Master insert identification

SPGX0602-C1

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

SO-SPGX0602C

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

SCGX050204-MP

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-SCGX050204

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000185

LPR Protruding length

115 mm

LS Shank length

50 mm

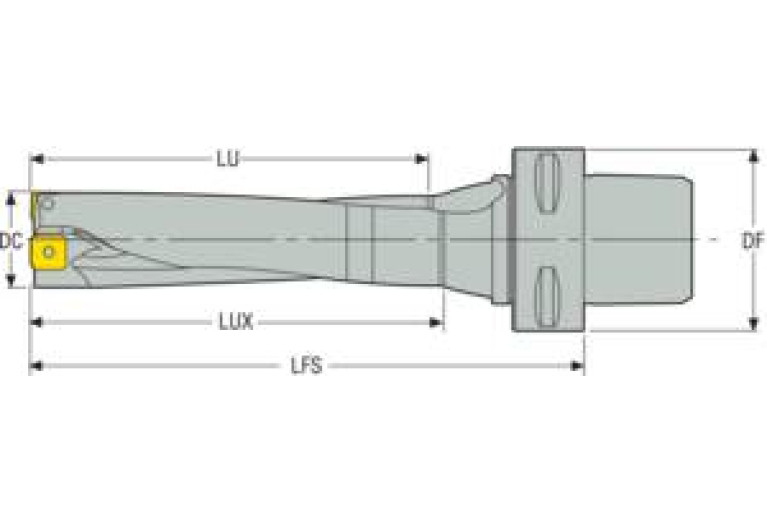

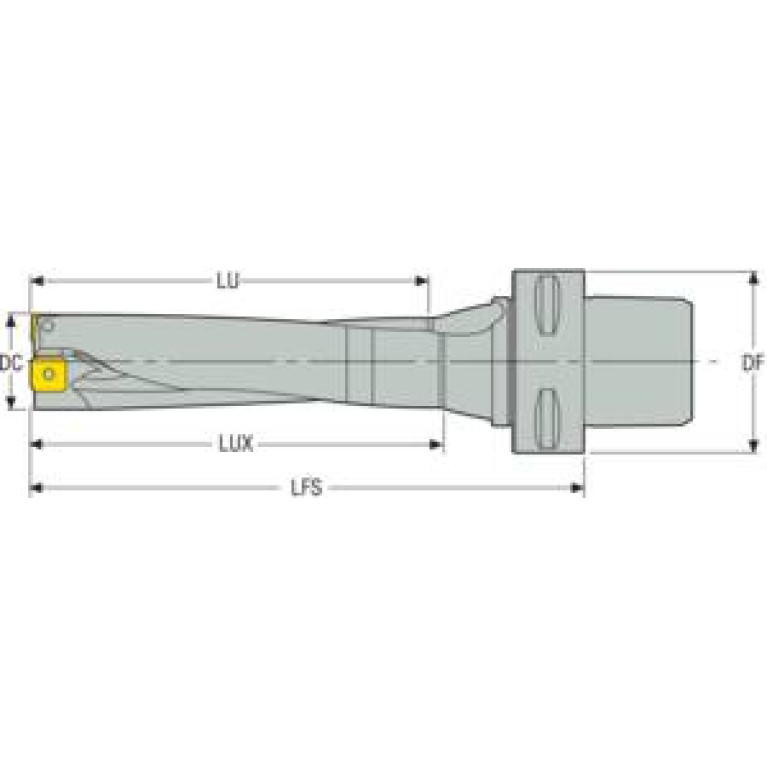

LU Usable length

81 mm

MIID Master insert identification

SPGX0602-C1

Name Identifying order number

SD524-19-76-C5

NOF Flute count

2

NUMBER INSERTS OUTSIDE Number of inserts outside

1

OAL Overall length

145 mm

SIG Point angle 1st step

175 Degree

Working process

BVB - Drilling

WT Weight of item

0.56 kg

Номер таблицы (BI) / Block index (BI)

1
