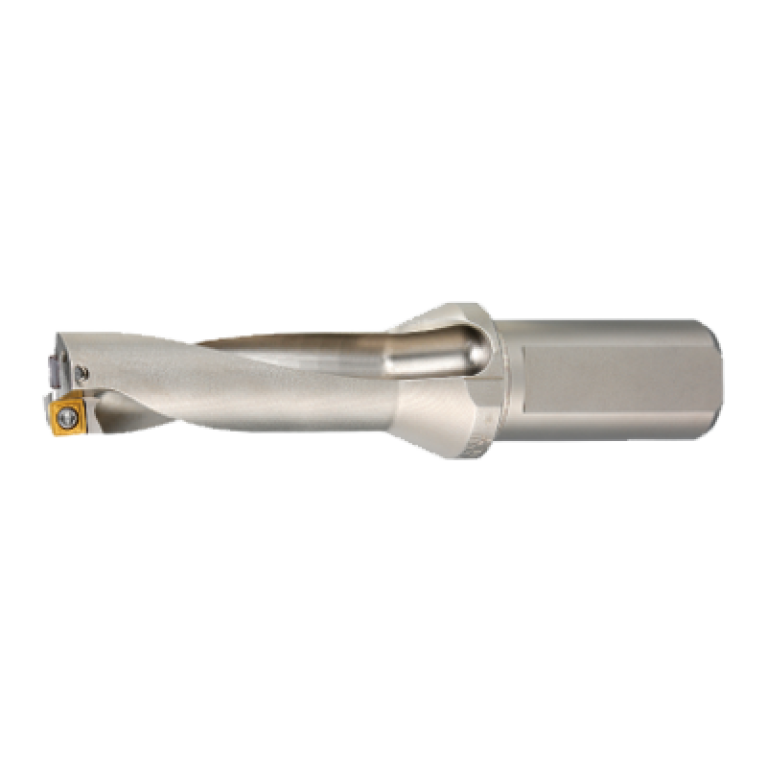

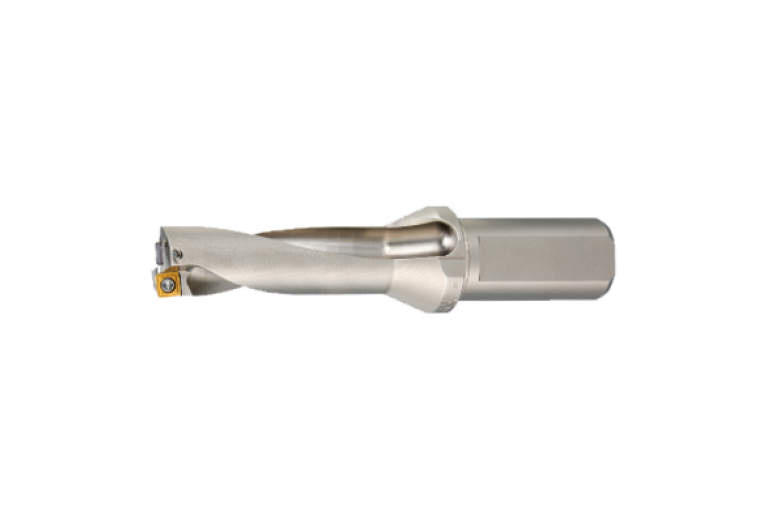

Главная Каталог продукции Toolunited 10 306-01 - Twist drill for indexable inserts MVX1650X4F20

MVX1650X4F20

MVX1650X4F20 MVX1650X4F20 MVX1650X4F20 MVX1650X4F20

MVX1650X4F20

Mitsubishi Materials
Артикул: 10583265
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
4 - With Coolant exit, axial on hole circle

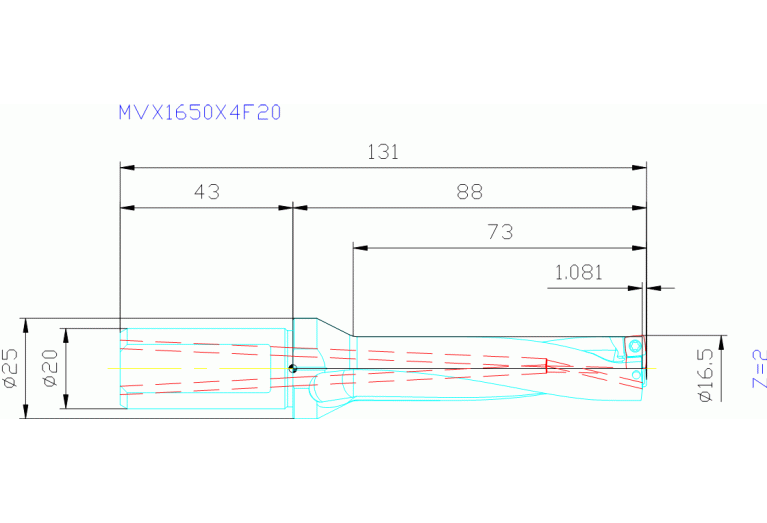

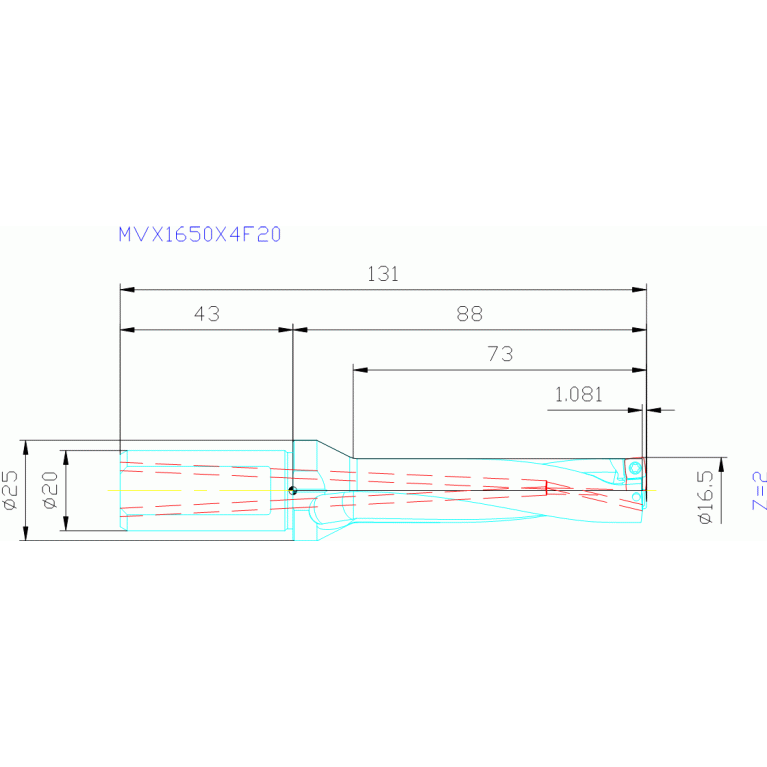

DC Cutting diameter minimum
16.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL02000115
FamilyProducts
drilling
HAND Cutting direction
R - Right
ID Technical product number
10583265
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
306-01 - Twist drill for indexable inserts
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000115

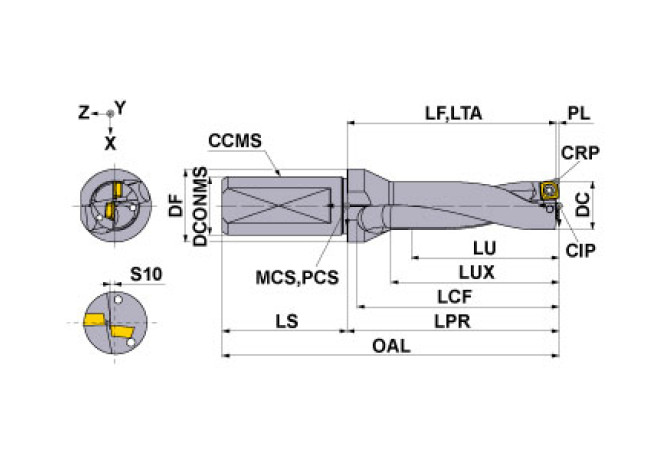

LPR Protruding length
88 mm
LU Usable length
66 mm
Name Identifying order number
MVX1650X4F20
OAL Overall length
131 mm
Working process
No working processes available
