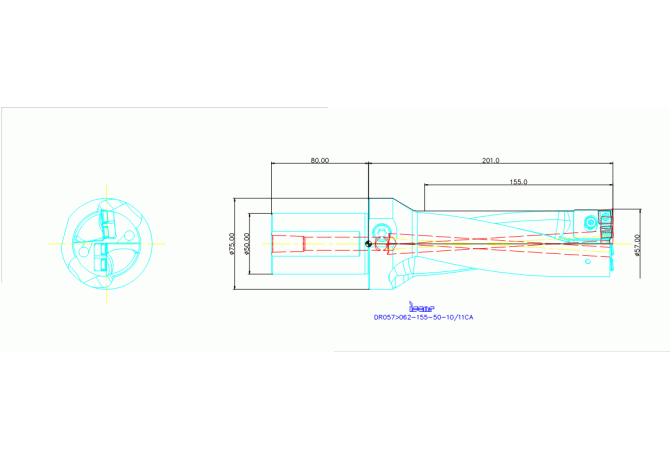

DR057>062-155-50-10/11CA

Артикул: 6137213

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DC Cutting diameter minimum

57 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

62 mm

DIN

ZYL05001105

FamilyProducts

DR Large Diameter Drills (57-80 mm) with Cartridges and One Flat Shank

ID Technical product number

6137213

Interface codes

J6 / J61

ISO

ZYL11G5000h$06

ISYC Subclass

306-01 - Twist drill for indexable inserts

LF Functional length

198.84 mm

LOC-01 BI Block index

LOC-01 ISO

IS$$150921757597889

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-150921757597889

LOC-02 BI Block index

LOC-02 ISO

IS$$226382657877079

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-226382657877079

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL11G5000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05001105

LPR Protruding length

201 mm

LS Shank length

80 mm

LU Usable length

155 mm

Name Identifying order number

DR057>062-155-50-10/11CA

OAL Overall length

281 mm

PL Point length

2.17 mm

SIG Point angle 1st step

172 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

4.32 kg
