Главная Каталог продукции Toolunited 10 306-01 - Twist drill for indexable inserts D4120-03-49.00F40-P47

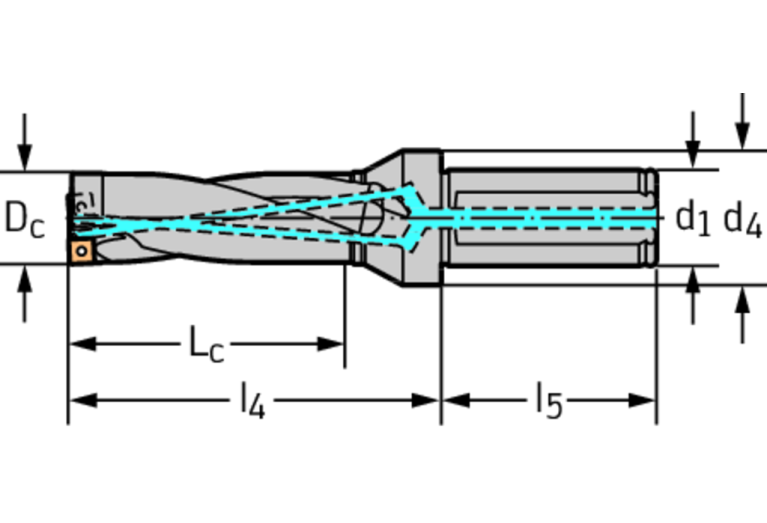

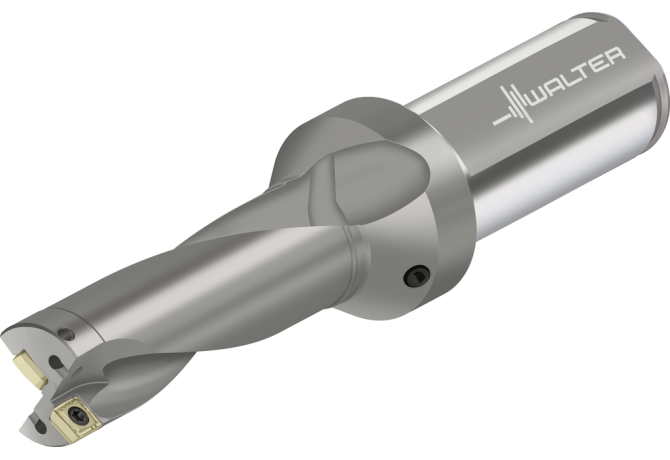

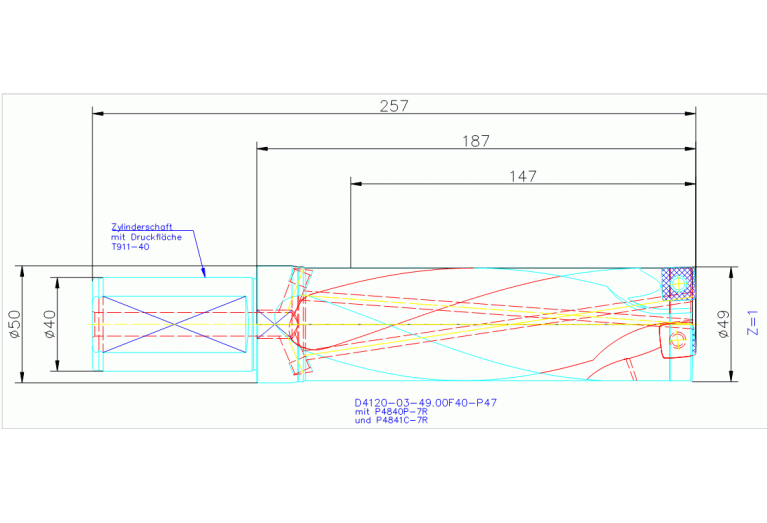

D4120-03-49.00F40-P47

D4120-03-49.00F40-P47 D4120-03-49.00F40-P47 D4120-03-49.00F40-P47 D4120-03-49.00F40-P47

D4120-03-49.00F40-P47

Walter
Артикул: 6929339
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
6
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
49 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL04001115
FamilyProducts
Indexable insert drills D4120
FHA Flute helix angle
22 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
6929339
Interface codes
J6 / J61
ISO
ZYL11G4000h$06
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
174.8 mm
LF Functional length
186.463 mm
LOC-03 CCFMS Form
11
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL11G4000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001115
LPR Protruding length
187 mm
LS Shank length
70 mm
LU Usable length
147 mm
MTP Clamping type code 1st step
S - Screwed on across the bore, with counter bore
Name Identifying order number
D4120-03-49.00F40-P47
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
257 mm
PL Point length
0.537 mm
RPMX Rotational speed maximum
3500 1/min
SIG Point angle 1st step
176 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
WT Weight of item
2.41 kg
