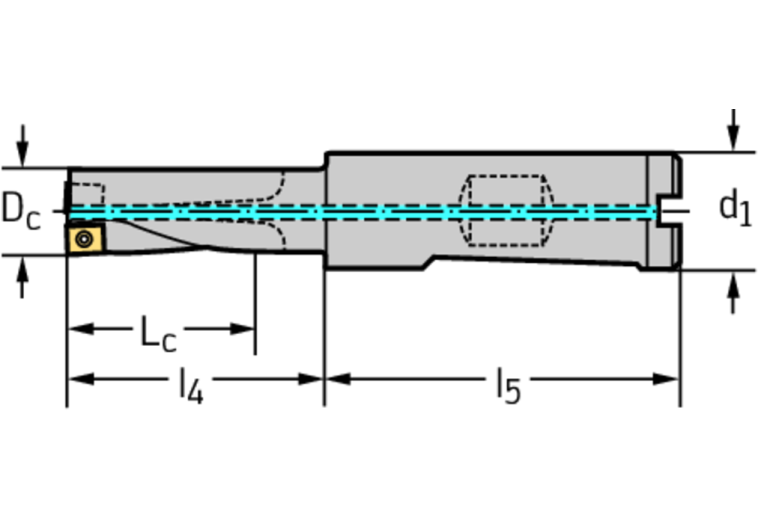

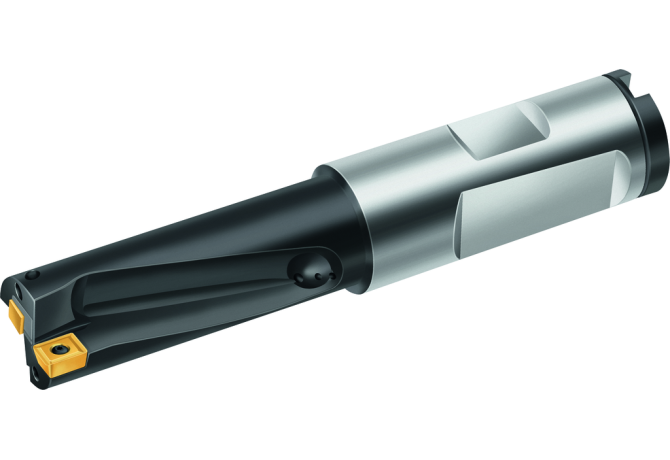

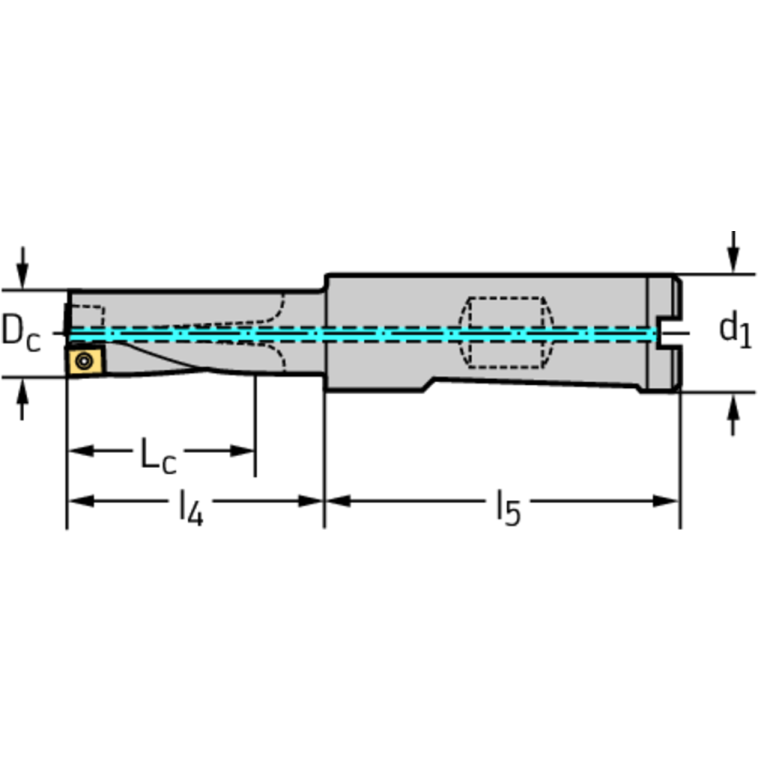

Главная Каталог продукции Toolunited 10 306-01 - Twist drill for indexable inserts B3212.U5F.0159.Z01.032R

B3212.U5F.0159.Z01.032R

B3212.U5F.0159.Z01.032R B3212.U5F.0159.Z01.032R B3212.U5F.0159.Z01.032R

B3212.U5F.0159.Z01.032R

Walter
Артикул: 5027483
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
15.88 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL10002335
FamilyProducts
Insert drills B3212
FHA Flute helix angle
0 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
5027483
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
ZYL23S1000h$06
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
53 mm
LF Functional length
56.35 mm
LOC-03 CCFMS Form
23
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL23S1000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10002335
LPR Protruding length
57.15 mm
LS Shank length
101.6 mm
LU Usable length
31.75 mm
MTP Clamping type code 1st step
S - Screwed on across the bore, with counter bore
Name Identifying order number
B3212.U5F.0159.Z01.032R
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
158.75 mm
PL Point length
0.8 mm
RPMX Rotational speed maximum
999999 1/min
SIG Point angle 1st step
175.8 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
WT Weight of item
0.492 kg
