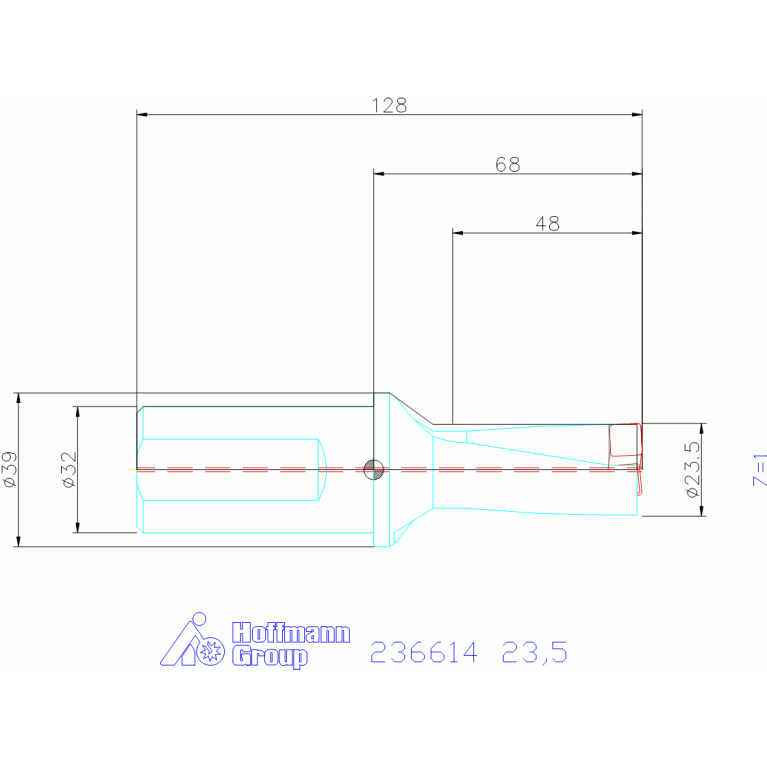

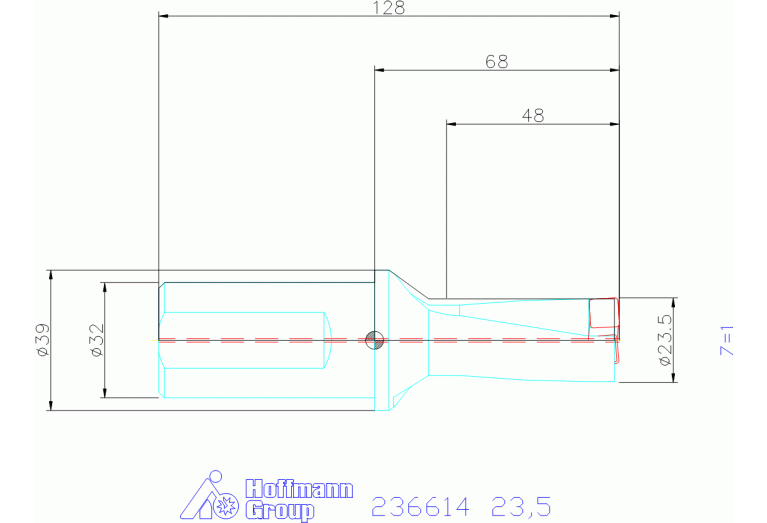

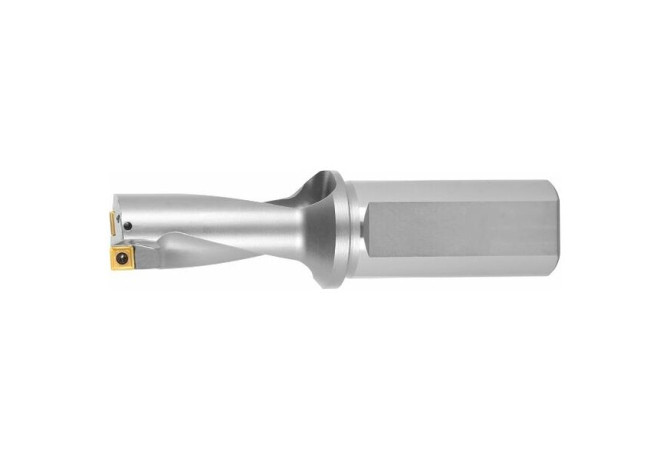

Главная Каталог продукции Toolunited 10 306-01 - Twist drill for indexable inserts 236614 23,5

236614 23,5

236614 23,5

Hoffmann Group

Артикул: 236614 23,5

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A1B Cutting edge angle major Pos. B

90 Degree

A2A Clearance angle major Pos. A

9 Degree

A2B Clearance angle major Pos. B

9 Degree

B1A Cutting edge length Pos. A

8 mm

B1B Cutting edge length Pos. B

8 mm

B3A Inscribed circle diameter Pos. A

8 mm

B3B Inscribed circle diameter Pos. B

8 mm

BLDA Tool style code Position A

2

BLDB Tool style code Position B

2

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

3.4 mm

C1B Insert thickness Pos. B

3.4 mm

CCONMS Connection count machine side

1

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.8 mm

D1B Corner radius Pos. B

0.8 mm

DC Cutting diameter minimum

23.5 mm

DCP Data chip provision

0 - Without data chip

DF Flange diameter

39 mm

DIN

ZYL03201015

FamilyProducts

KUB Pentron® indexable drill Plain shank

FDC Flute design code

3 - Equal helix

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

306-01 - Twist drill for indexable inserts

LCF Length chip flute

64 mm

LF Functional length

62.59 mm

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

SOGX080308

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO0803083N

LOC-03 CCFMS Connection code form

10

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201015

LPR Protruding length

68 mm

LS Shank length

60 mm

LU Usable length

48 mm

Name Identifying order number

236614 23,5

NUMBER INSERTS INSIDE Number of inserts inside

1

OAL Overall length

128 mm

PL Point length

1.41 mm

SIG Point angle 1st step

178 Degree

Working process

BAB - Open by boring,BVB - Drilling

WT Weight of item

0.431 kg
