236614 18,5
236614 18,5
Артикул:
236614 18,5
В наличии
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
9 Degree
A2B Clearance angle major Pos. B
9 Degree
B1A Cutting edge length Pos. A
6.2 mm
B1B Cutting edge length Pos. B
6.2 mm
B3A Inscribed circle diameter Pos. A
6.2 mm
B3B Inscribed circle diameter Pos. B
6.2 mm
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
2.75 mm
C1B Insert thickness Pos. B
2.75 mm
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.6 mm
D1B Corner radius Pos. B
0.6 mm
DC Cutting diameter minimum
18.5 mm
DCP Data chip provision
0 - Without data chip
DF Flange diameter
30 mm
DIN
ZYL02501015
FamilyProducts

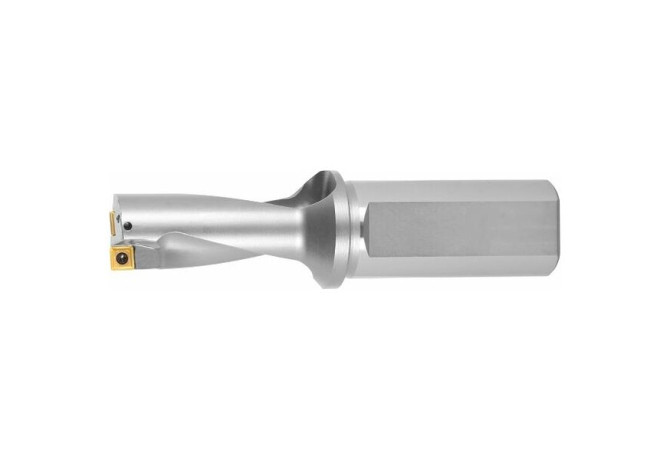

KUB Pentron® indexable drill Plain shank
FDC Flute design code
3 - Equal helix
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
52 mm
LF Functional length
50.9 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015
LPR Protruding length
56 mm
LS Shank length
56 mm
LU Usable length
38 mm
Name Identifying order number
236614 18,5
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
112 mm
PL Point length
1.1 mm
SIG Point angle 1st step
178 Degree
Working process
BAB - Open by boring,BVB - Drilling
WT Weight of item
0.23 kg
