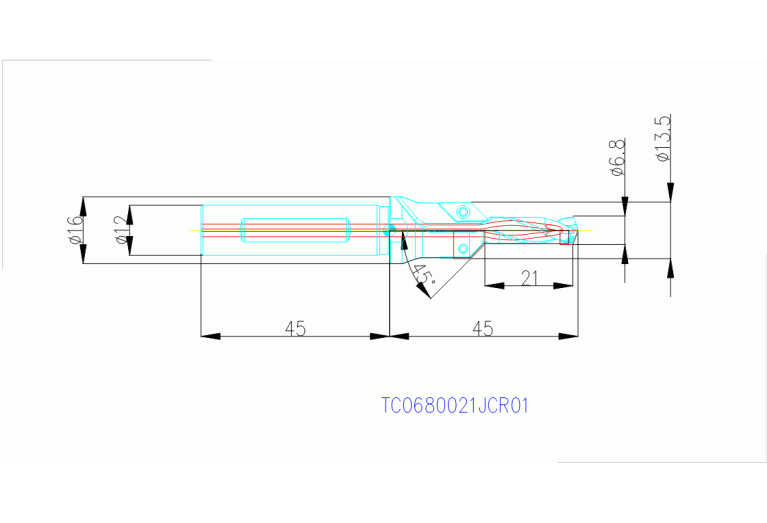

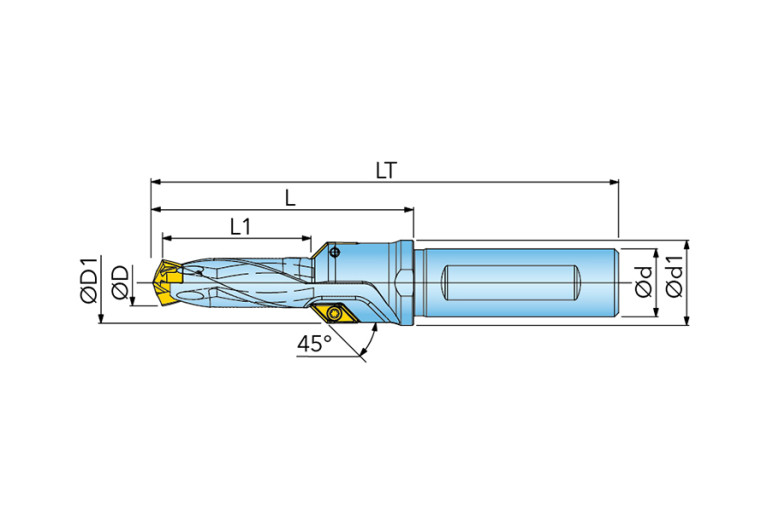

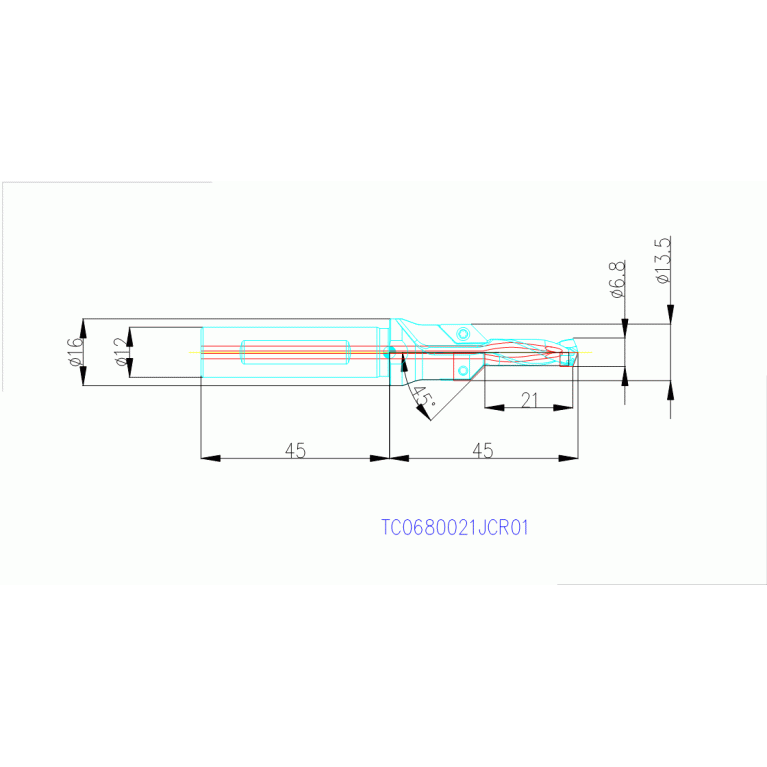

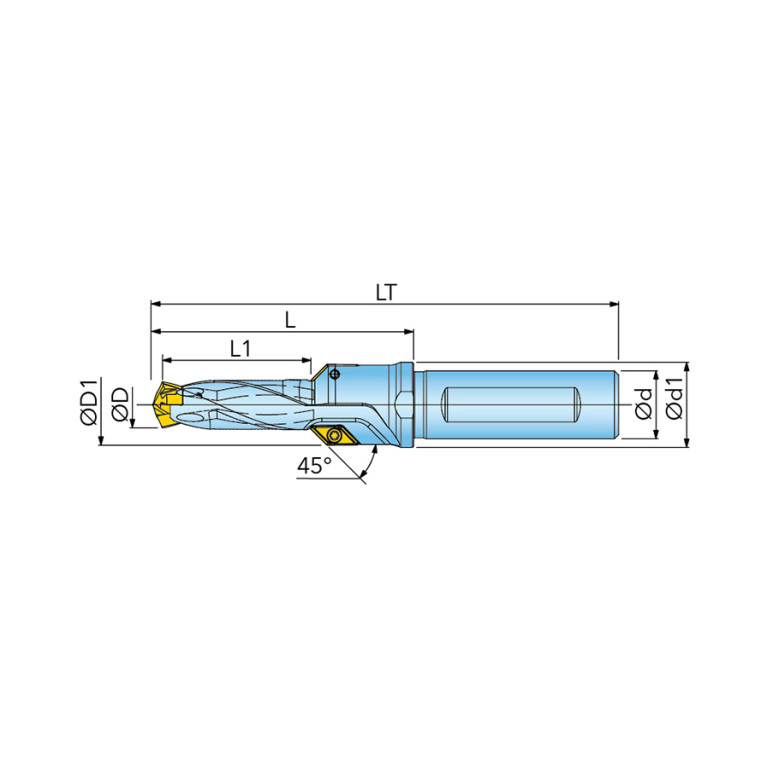

Главная Каталог продукции Toolunited 10 306-00 - Drills for indexable inserts unspecified TC0680021JCR01

TC0680021JCR01

TC0680021JCR01 TC0680021JCR01 TC0680021JCR01

TC0680021JCR01

Ingersoll
Артикул: 6135628
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
6.5 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
6.9 mm
Delivery state
LA - Soon discontinued
DF Flange diameter
16 mm
DIN
ZYL01201115
FamilyProducts
Head changeable chamfer Drill
GEP Guide element property
0 - Without guide elements
GPP Guide pilot
0 - Without pilot
HAND Cutting direction
R - Right
ID Technical product number
6135628
Interface codes
J6 /
ISYC Subclass
306-00 - Drills for indexable inserts unspecified
LOC-01 BI Block index
1
LOC-01 MTP Clamping type code 1st step
X Special design, all types
LOC-01-Connection-codes
J43 / J431 - interface code, workpiece side, for drilling heads or pilot drills
LOC-01-DIN
IL-BKTXX065R
LOC-02-Connection-codes
J43 / J431 - interface code, workpiece side, for drilling heads or pilot drills
LOC-02-DIN
IL-BPJ-J6r-1157
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01201115
LPR Protruding length
45 mm
LU Usable length
21 mm
MTP Clamping type code 1st step
X - Special design, all types
Name Identifying order number
TC0680021JCR01
NOS Step count
1
OAL Overall length
90 mm
SIG Point angle 1st step
140 Degree
Working process
BVB - Drilling
WT Weight of item
0.06 kg
