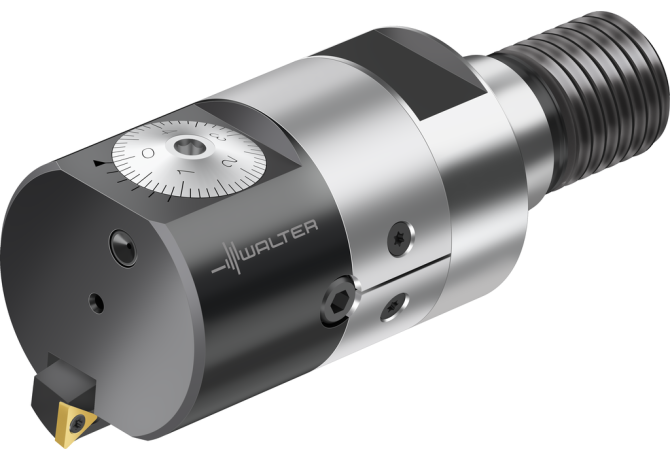

Главная Каталог продукции Toolunited 10 305-18 - Boring head with adjustable unit B4030.T45.55-70.Z1.TC06

B4030.T45.55-70.Z1.TC06

B4030.T45.55-70.Z1.TC06 B4030.T45.55-70.Z1.TC06 B4030.T45.55-70.Z1.TC06 B4030.T45.55-70.Z1.TC06

B4030.T45.55-70.Z1.TC06

Walter
Артикул: 7649550
В наличии
В корзину
Описание
Характеристики

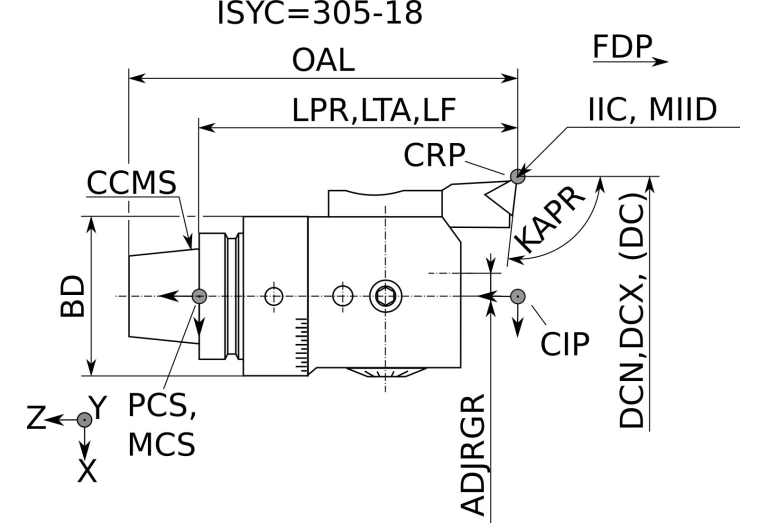

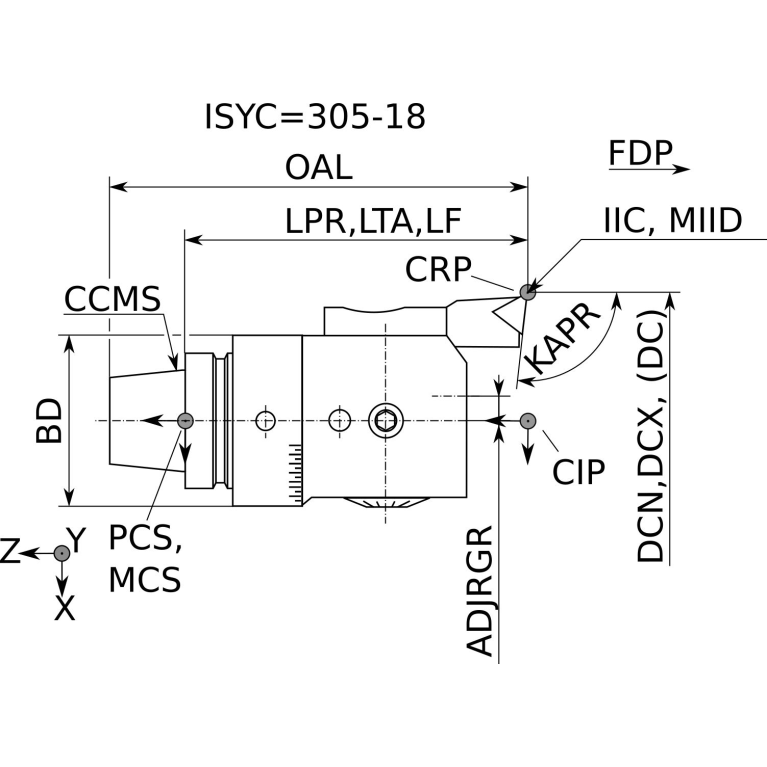

BMC Body material code
S - Solid steel

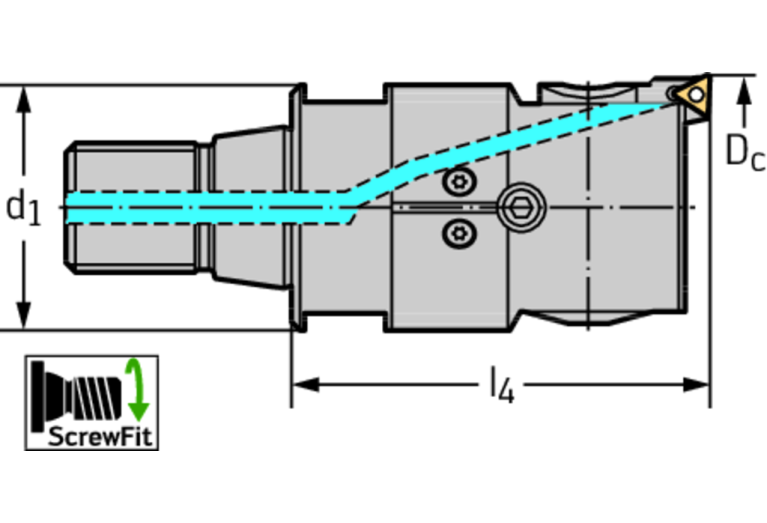

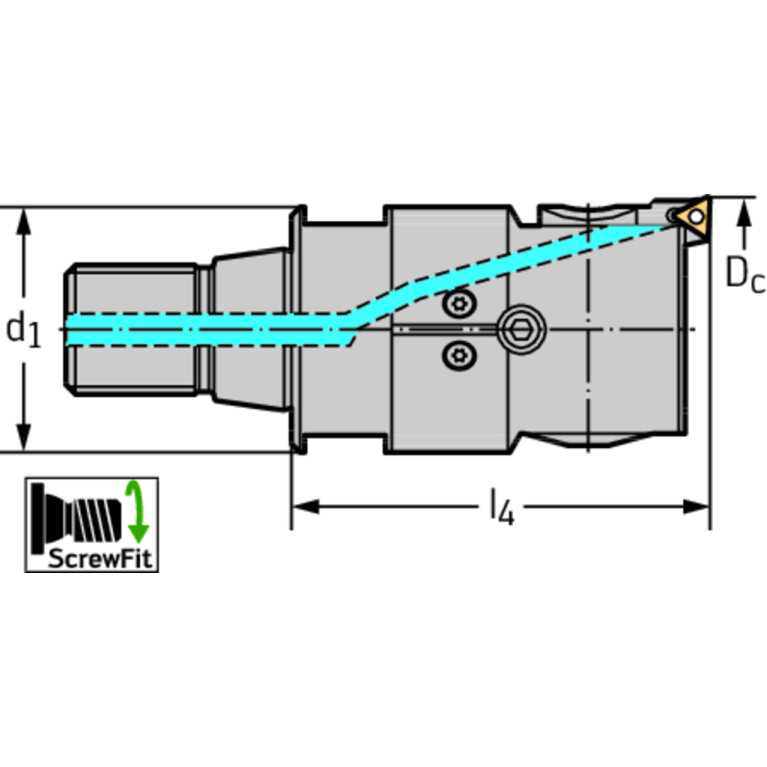

CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCN Cutting diameter minimum
55 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
70 mm
Delivery state valid from
12/1/2023
DIN
SAW04500195
DIN CSW1
TC06T1043N
FamilyProducts
Precision boring tool B4030
HAND Cutting direction
R - Right
ID Technical product number
7649550
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
SAW01C0450$$$$
ISO CSW1
ISO$TC06T1003****04
ISYC Subclass
305-18 - Boring head with adjustable unit
KAPR Tool cutting edge angle
93 Degree
LF Functional length
80 mm
LOC-01 ISO
ISO$TC06T1003****04
LOC-01-Connection-codes
J41 / J441 - Interface code position A (cutting edge) (Unknown 01)
LOC-01-DIN
TC06T1043N
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0450
LOC-03 DCONMS Diameter
45 mm
LOC-03 ISO
SAW01C0450$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW04500195
LPR Protruding length
80 mm
MIID Master insert identification
TCMT 06 T1 00 RE=0
Name Identifying order number
B4030.T45.55-70.Z1.TC06

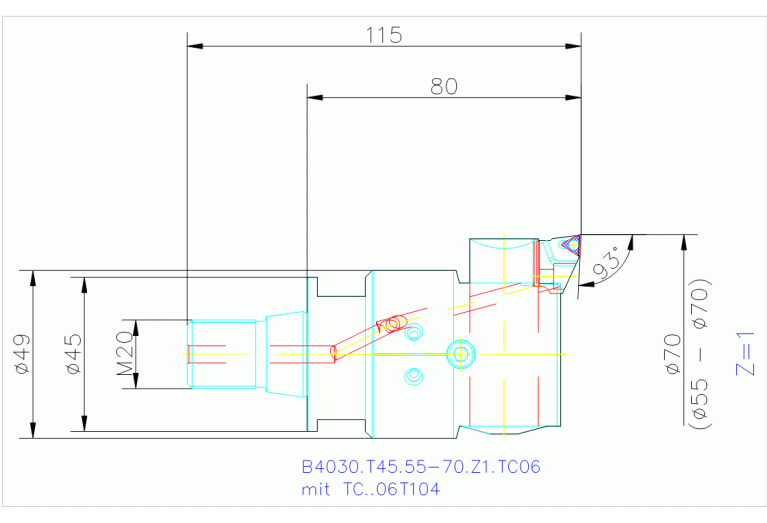

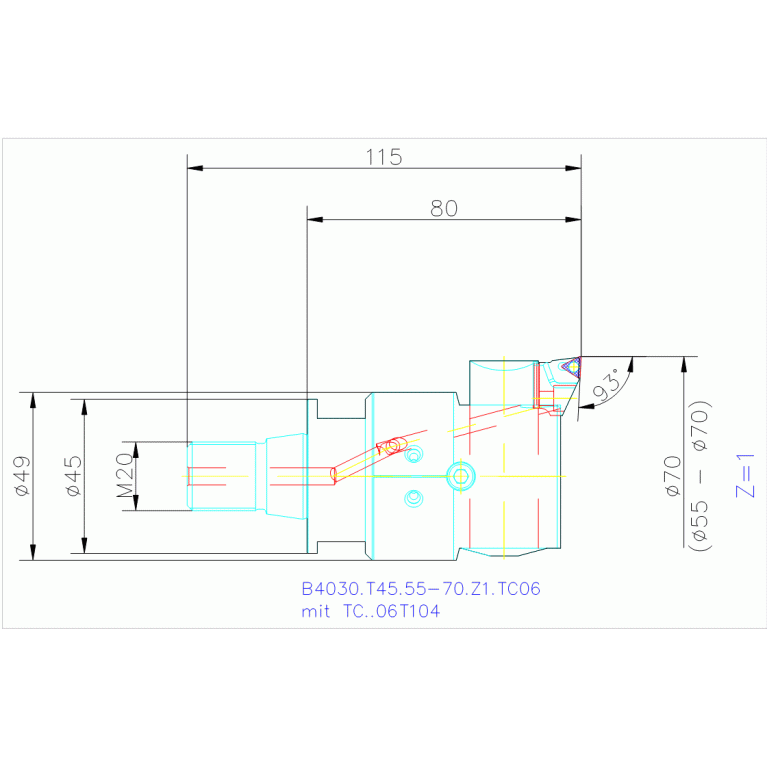

OAL Overall length
115 mm
RPMX Rotational speed maximum
9000 1/min
Working process
BAB - Open by boring
WT Weight of item
1.04 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
