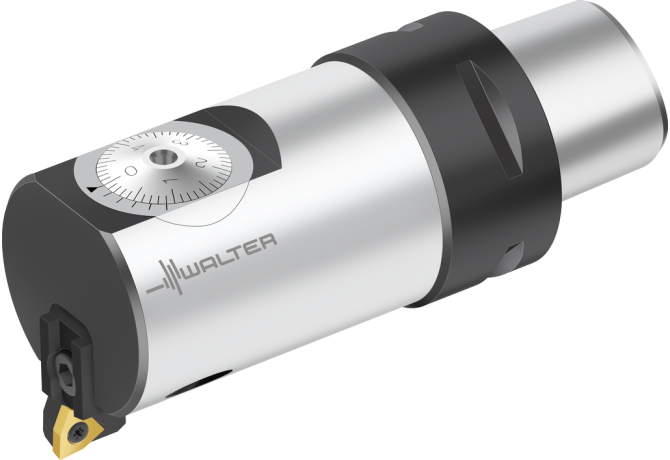

Главная Каталог продукции Toolunited 10 305-18 - Boring head with adjustable unit B3230.C3.041-049.Z1.WC03

B3230.C3.041-049.Z1.WC03

Артикул: 6497928

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCN Cutting diameter minimum

41 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

49.5 mm

Delivery state valid from

12/1/2023

DIN

CCS03200195

DIN CSW1

WC0302993N

FamilyProducts

Precision boring tool B3230

HAND Cutting direction

R - Right

ID Technical product number

6497928

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

CCS01C0320$$$$

ISO CSW1

ISO$WC0302003******

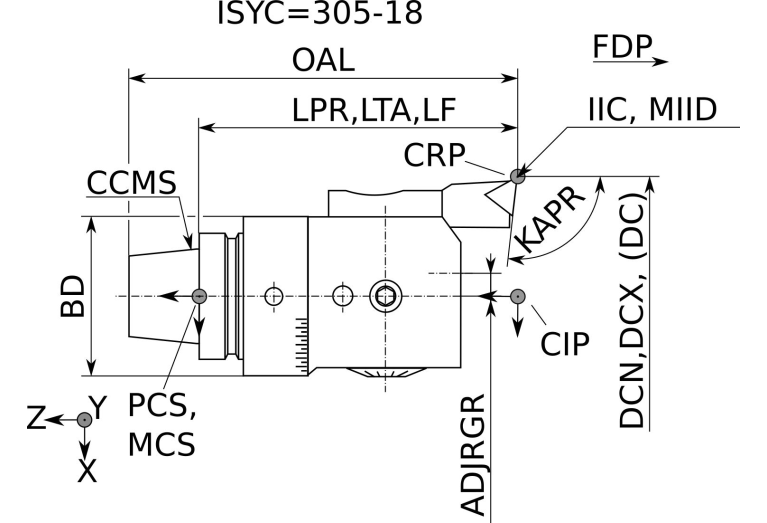

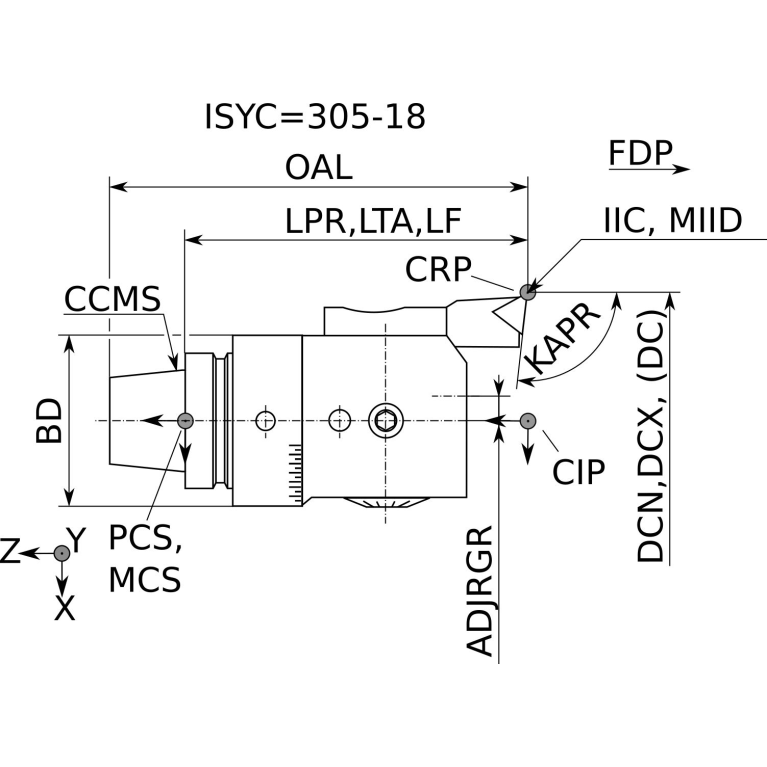

ISYC Subclass

305-18 - Boring head with adjustable unit

KAPR Tool cutting edge angle

93 Degree

LF Functional length

80 mm

LOC-01 ISO

ISO$WC0302003******

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

WC0302993N

LOC-02 ISO

WR$$WC0302**3******

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

W-WC0302**3******

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 ISO

CCS01C0320$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS03200195

LPR Protruding length

80 mm

Name Identifying order number

B3230.C3.041-049.Z1.WC03

OAL Overall length

99 mm

RPMX Rotational speed maximum

6450 1/min

Working process

No working processes available

WT Weight of item

0.419 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
