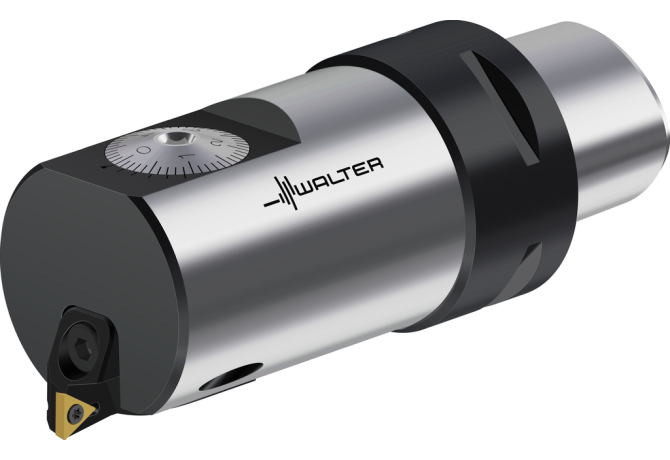

Главная Каталог продукции Toolunited 10 305-18 - Boring head with adjustable unit B3230.C3.020-038.Z1.TC06

B3230.C3.020-038.Z1.TC06

B3230.C3.020-038.Z1.TC06 B3230.C3.020-038.Z1.TC06 B3230.C3.020-038.Z1.TC06

B3230.C3.020-038.Z1.TC06

Walter
Артикул: 7649192
В наличии
В корзину
Описание
Характеристики

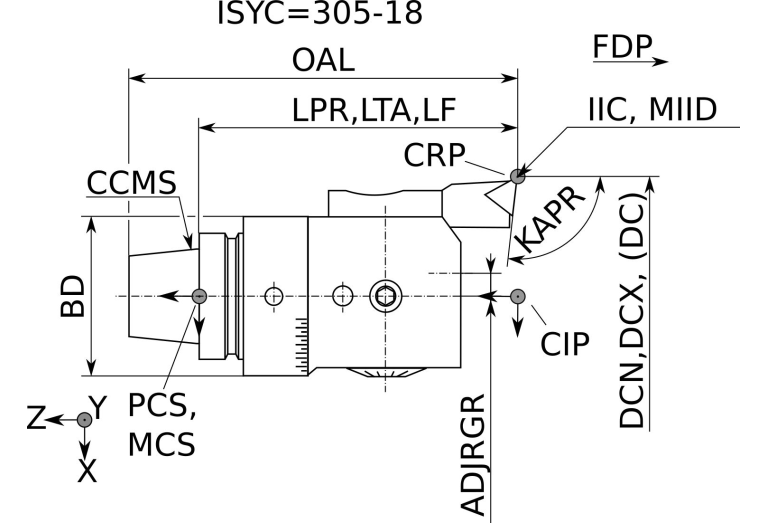

BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCN Cutting diameter minimum
20 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
38.5 mm
Delivery state valid from
12/1/2023
DIN
CCS03200195
DIN CSW1
TC06T1043N
FamilyProducts
Precision boring tool – Set B3230
HAND Cutting direction
R - Right
ID Technical product number
7649192
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
CCS01C0320$$$$
ISO CSW1
ISO$TC06T1003****04
ISYC Subclass
305-18 - Boring head with adjustable unit
KAPR Tool cutting edge angle
93 Degree
LF Functional length
80 mm
LOC-01 ISO
ISO$TC06T1003****04
LOC-01-Connection-codes
J41 / J441 - Interface code position A (cutting edge) (Unknown 01)
LOC-01-DIN
TC06T1043N
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR Protruding length
80 mm
LS Shank length
19 mm
MIID Master insert identification
TCMT 06 T1 00 RE=0
Name Identifying order number
B3230.C3.020-038.Z1.TC06
OAL Overall length
99 mm
RPMX Rotational speed maximum
8100 1/min
Working process
BAB - Open by boring
WT Weight of item
0.277 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
