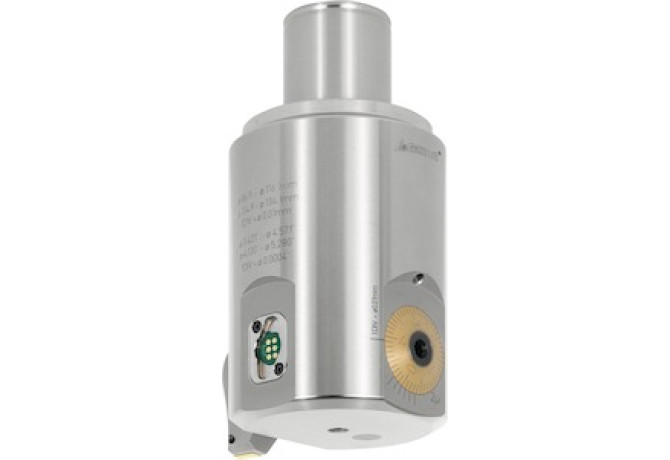

Главная Каталог продукции Toolunited 10 305-18 - Boring head with adjustable unit 237602 HW80

237602 HW80

Артикул: 237602 HW80

В наличии

В корзину

Описание

Характеристики

ADJRGR Adjustment range radial

18.6 mm

BDX Body diameter maximum

203.1 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

DIN

HOG-HW80

DIN CSW1

CC09T3043L

FamilyProducts

Digital micro-adjustable head HW

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

305-18 - Boring head with adjustable unit

LF Functional length

140 mm

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

CC09T3043L

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CZCMS Connection size code

0800

LOC-03 DCONMS Diameter

80 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-HW80

LPR Protruding length

140 mm

Name Identifying order number

237602 HW80

OAL Overall length

180 mm

Working process

No working processes available

WT Weight of item

5.458 kg
