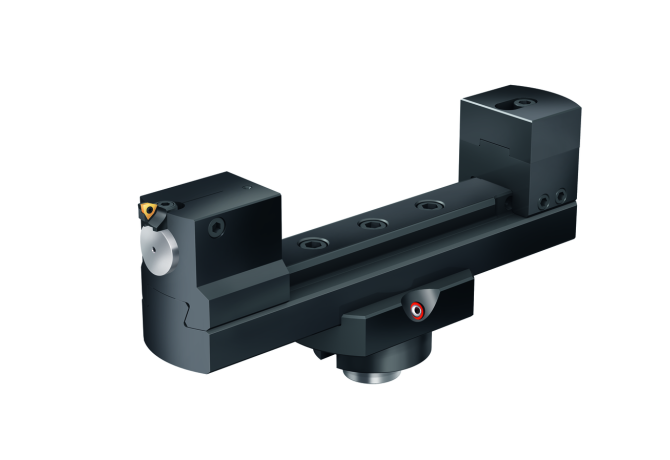

Главная Каталог продукции Toolunited 10 305-09 - Assembled single point bridge tool B3234.UN8.500-570.Z1WC05

B3234.UN8.500-570.Z1WC05

Артикул: 5634653

В наличии

В корзину

Описание

Характеристики

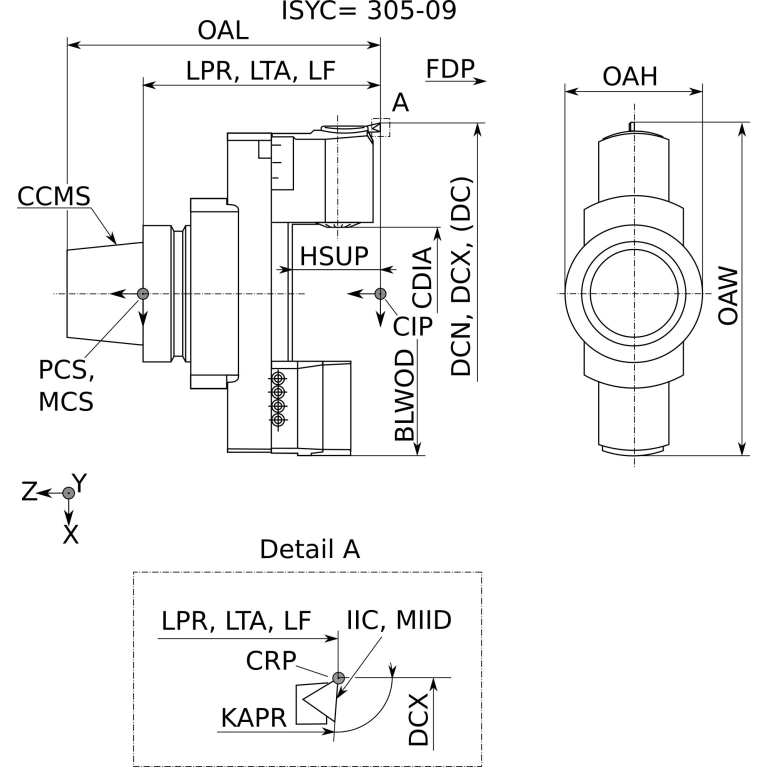

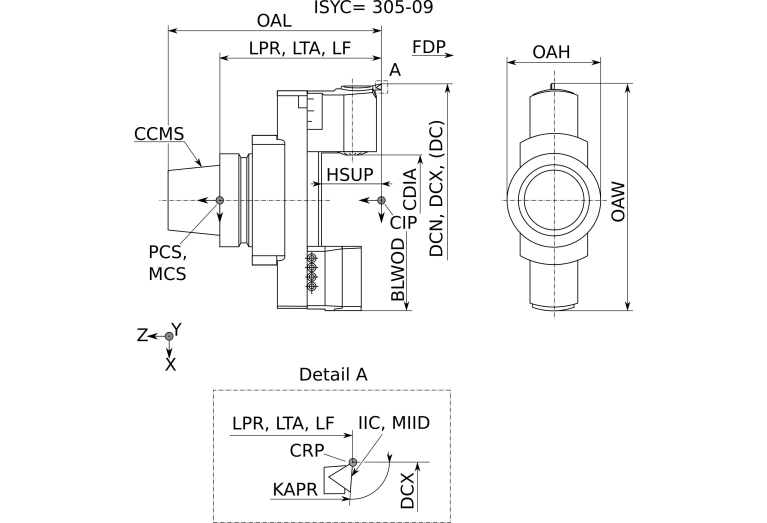

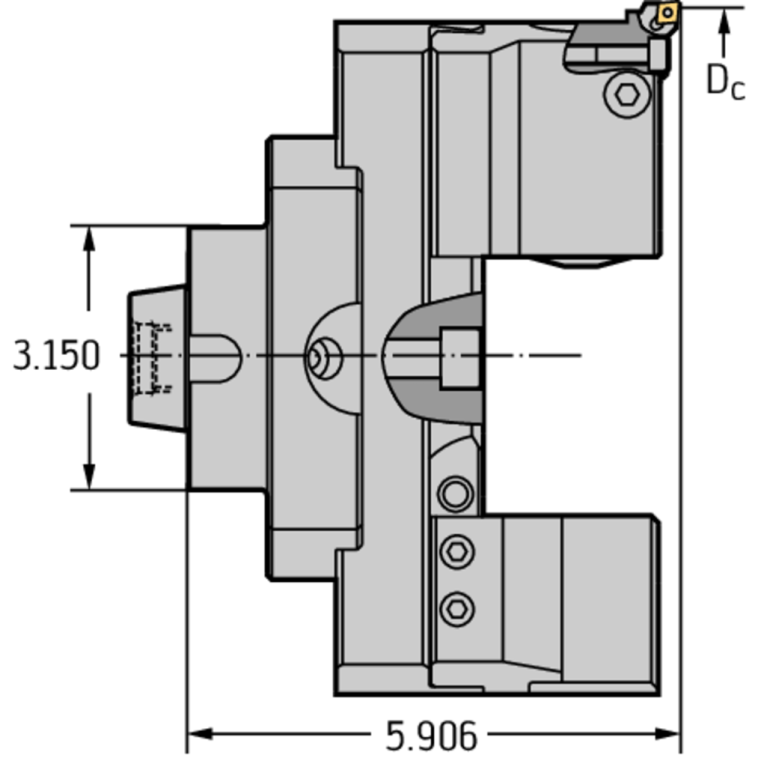

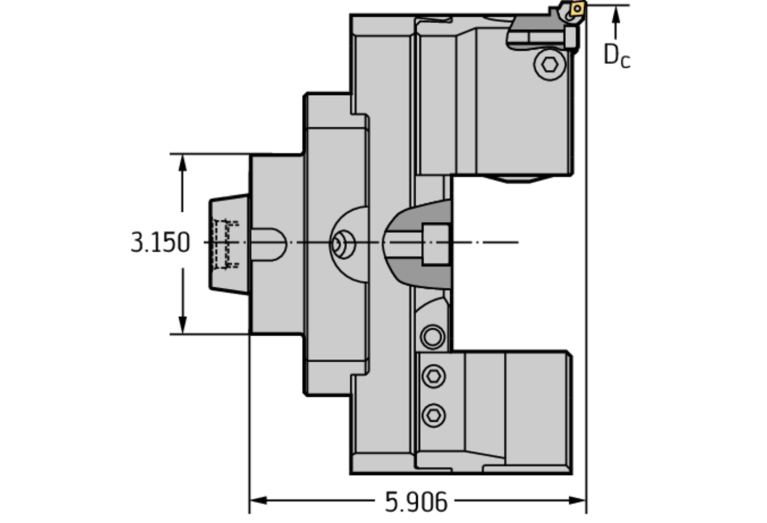

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCN Cutting diameter minimum

500 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

570 mm

Delivery state valid from

12/1/2023

DIN

NCT08000195

DIN CSW1

WC0503993N

FamilyProducts

Precision boring tool B3234

HAND Cutting direction

R - Right

ID Technical product number

5634653

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

NCT01C0800$$$$

ISO CSW1

ISO$WC0503003******

ISYC Subclass

305-09 - Assembled single point bridge tool

KAPR Tool cutting edge angle

93 Degree

LF Functional length

150 mm

LOC-01 ISO

ISO$WC0503003******

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

WC0503993N

LOC-02 ISO

WR$$WC0503**3******

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

W-WC0503**3******

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

NCT Novex-NC-Tools WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0800

LOC-03 DCONMS Diameter

80 mm

LOC-03 ISO

NCT01C0800$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

NCT08000195

LPR Protruding length

150 mm

MIID Master insert identification

WCMT 05 03 04

Name Identifying order number

B3234.UN8.500-570.Z1WC05

OAL Overall length

168 mm

RPMX Rotational speed maximum

550 1/min

Working process

No working processes available

WT Weight of item

17.1 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
