Главная Каталог продукции Toolunited 10 304-12 - Sawing blade 179820 20X0,6

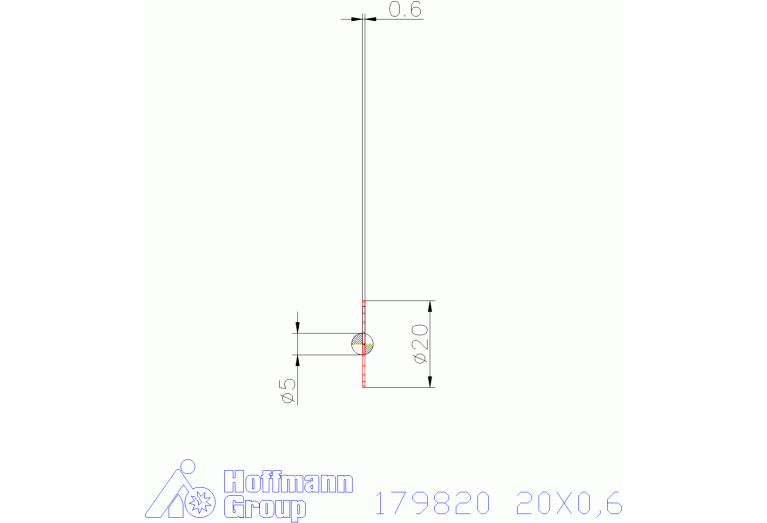

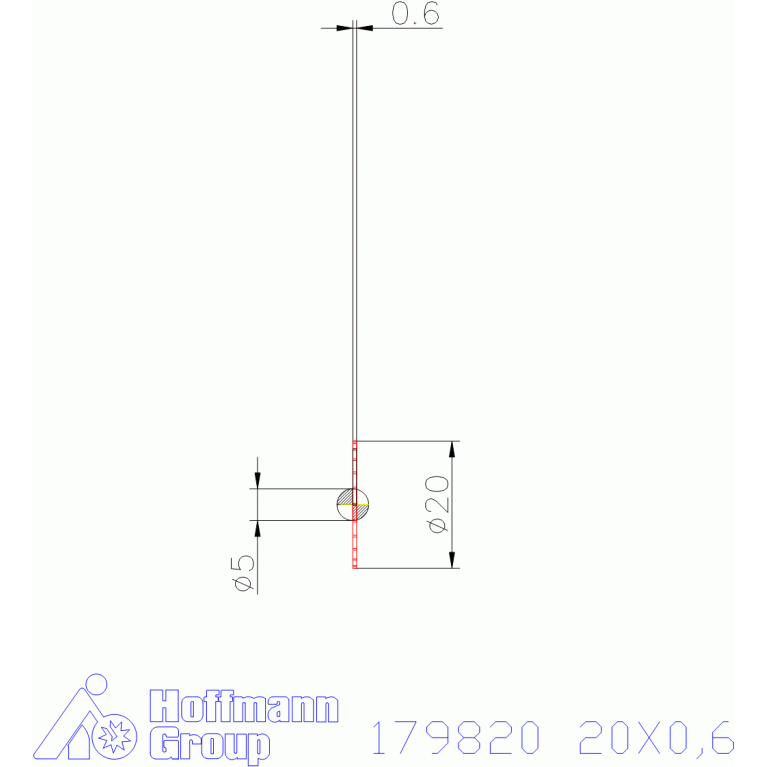

179820 20X0,6

Артикул: 179820 20X0,6

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

6 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

0.6 mm

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

DIN

FKA00500100

FamilyProducts

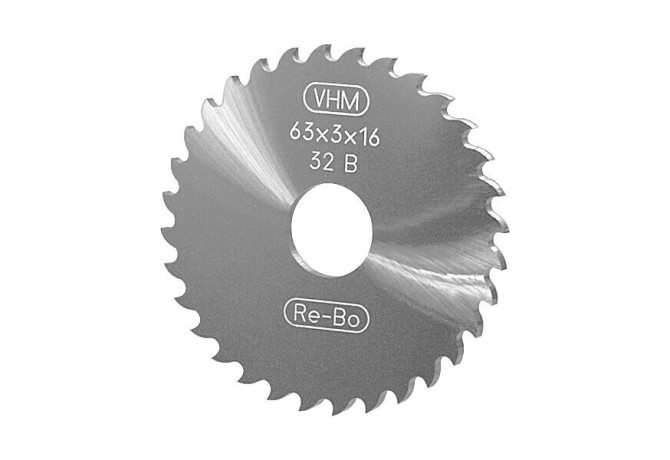

RE-BO Solid carbide circular saw blade DIN 1838 coarse

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

304-12 - Sawing blade

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FKA

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FKA00500100

Name Identifying order number

179820 20X0,6

OAW Overall width

0.6 mm

Working process

FNU - Groove milling,FTR - Slot cutting

WT Weight of item

0.009 kg

ZEFP Peripheral effective cutting edge count
