Главная Каталог продукции Toolunited 10 304-12 - Sawing blade 179800 125X0,8

179800 125X0,8

Артикул: 179800 125X0,8

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

40 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

0.8 mm

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

125 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/1/2017

DIN

FKA02200100

FamilyProducts

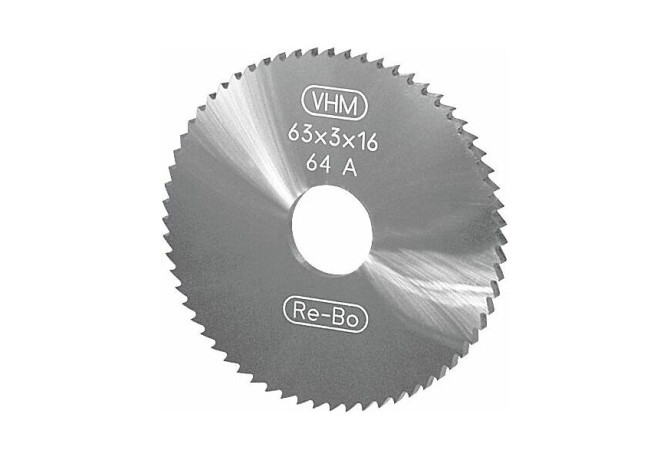

RE-BO Solid carbide circular saw blade DIN 1837 A fine

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

3 Degree

GRDMFG Grade manufacturers designation

VHM

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

304-12 - Sawing blade

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FKA

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FKA02200100

Name Identifying order number

179800 125X0,8

OAW Overall width

0.8 mm

STDNO Standard

DIN1838

TTHSC Tooth style

Working process

FNU - Groove milling,FTR - Slot cutting

WT Weight of item

0.141 kg

ZEFP Peripheral effective cutting edge count

160
