Главная Каталог продукции Toolunited 10 304-12 - Sawing blade 175000 50X6

175000 50X6

Артикул: 175000 50X6

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

16 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CWN Cutting width minimum

6 mm

CXSC Coolant exit style code

0 - Without coolant exit

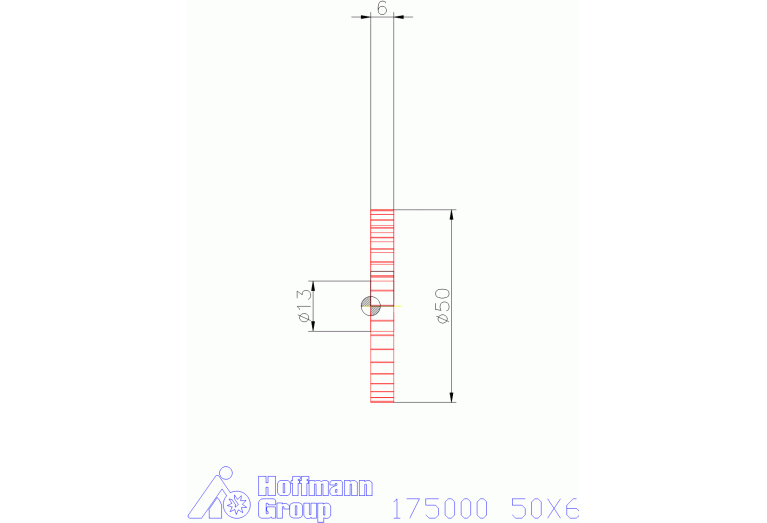

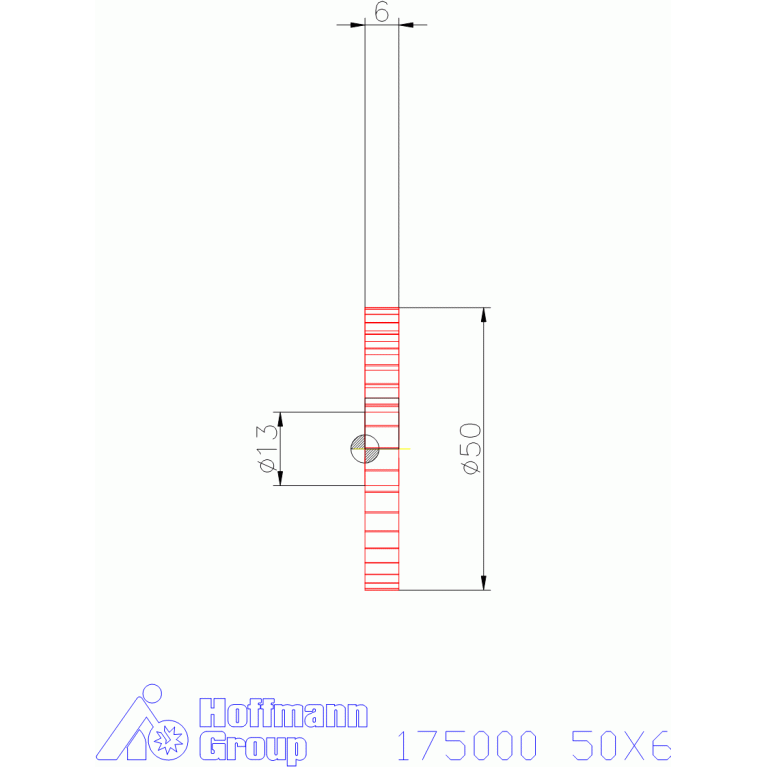

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

DIN

FKA01300100

FamilyProducts

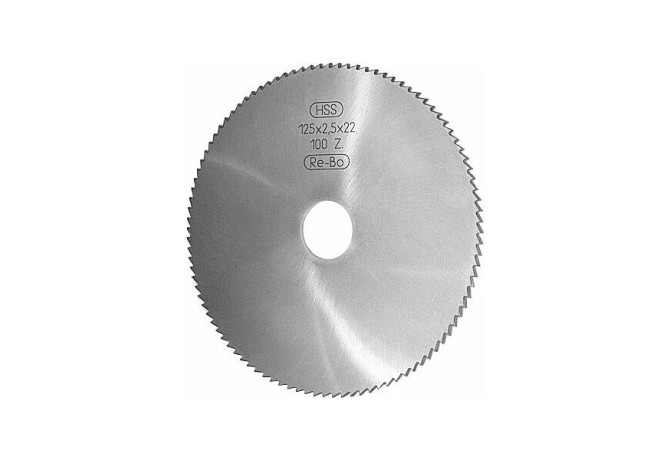

RE-BO Metal circular sawblade fine

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

GRDMFG Grade manufacturers designation

HSS

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

304-12 - Sawing blade

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FKA

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0130

LOC-03 DCONMS Diameter

13 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FKA01300100

Name Identifying order number

175000 50X6

OAW Overall width

6 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN1837

Working process

FNU - Groove milling,FTR - Slot cutting

WT Weight of item

0.081 kg

ZEFP Peripheral effective cutting edge count
