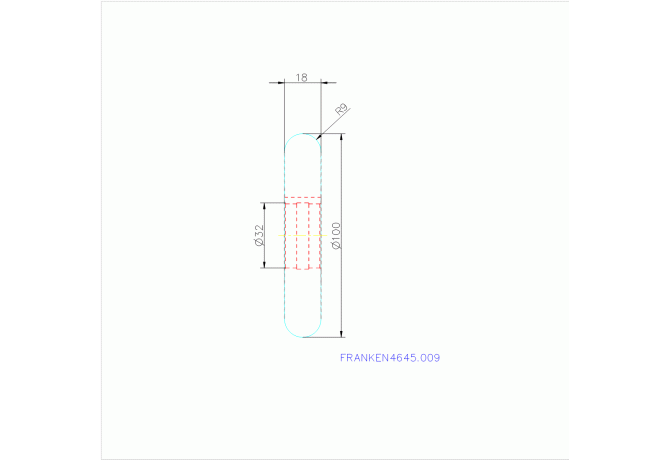

Главная Каталог продукции Toolunited 10 304-08 - Convex profile cutter 4645.009

4645.009

Артикул: 4645.009

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CDX Cutting depth maximum

27 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

ohne

COMPC Company code

E - Emuge

CRCLDIN Tool application class

CWN Cutting width minimum

18 mm

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

100 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2022

DHUB Hub diameter

46 mm

DIN

FDA03201100

FamilyProducts

Radius Cutter

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSSE

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

304-08 - Convex profile cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA03201100

Name Identifying order number

4645.009

OAW Overall width

18 mm

PRFRAD Profile radius 1

9 mm

STDNO Standard

DIN 856

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
