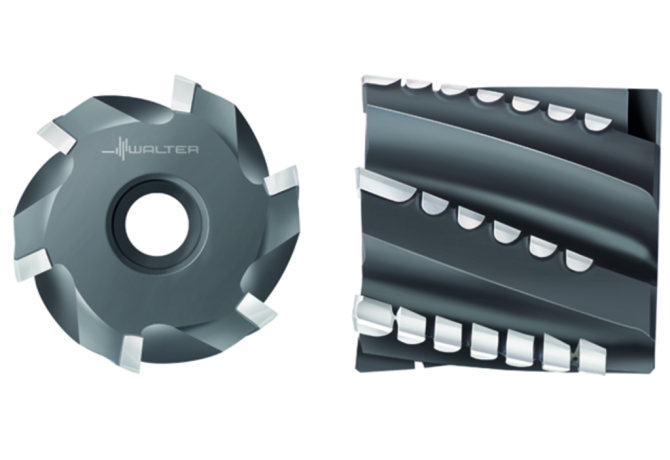

Главная Каталог продукции Toolunited 10 304-02 - Shell mill F1375.B.050.Z03.40.K

F1375.B.050.Z03.40.K

Артикул: 5001546

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CHW Corner chamfer width

0.8 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

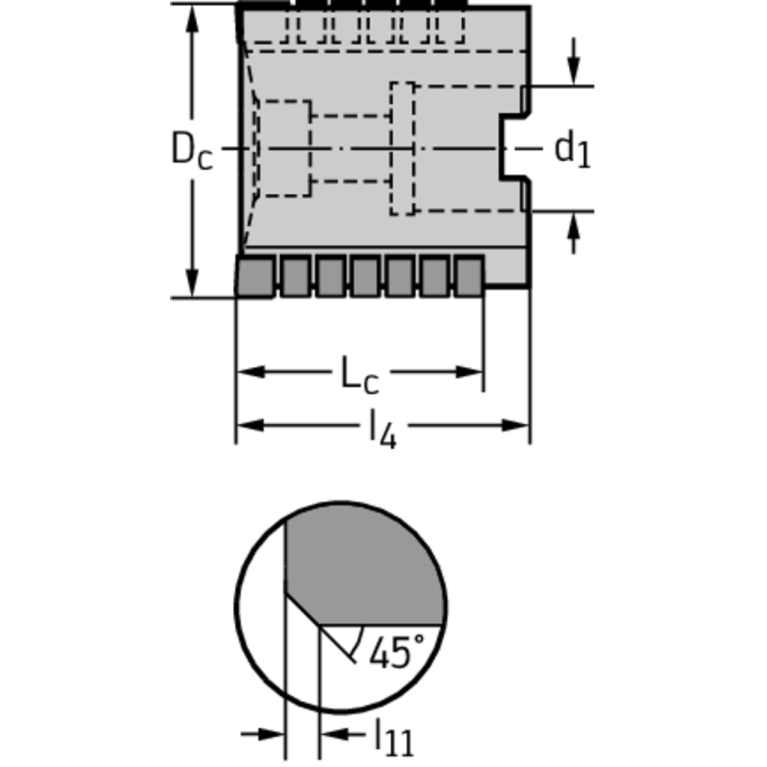

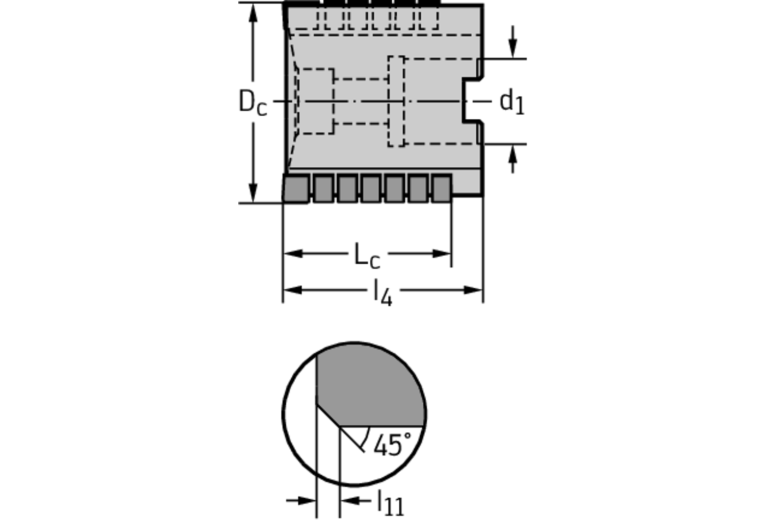

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

FDA02201200

F71 Number of corner designs

FamilyProducts

Brazed porcupine shoulder milling cutters F1375

FHA Flute helix angle

21 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

6 Degree

GAMP Rake angle axial

21 Degree

GRDMFG Grade manufacturers designation

WKM

HAND Cutting direction

R - Right

ID Technical product number

5001546

Interface codes

J6 / J61

ISO

FDA12G2200$$$$

ISYC Subclass

304-02 - Shell mill

KCH Corner chamfer angle

45 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03 ISO

FDA12G2200$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02201200

Name Identifying order number

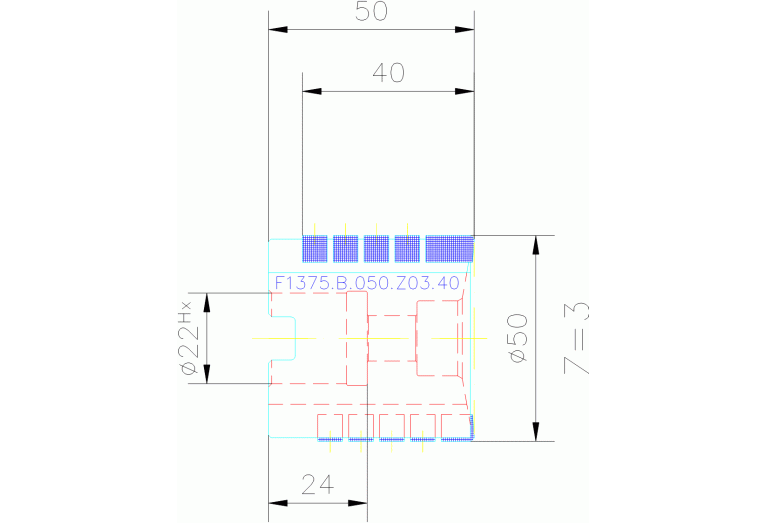

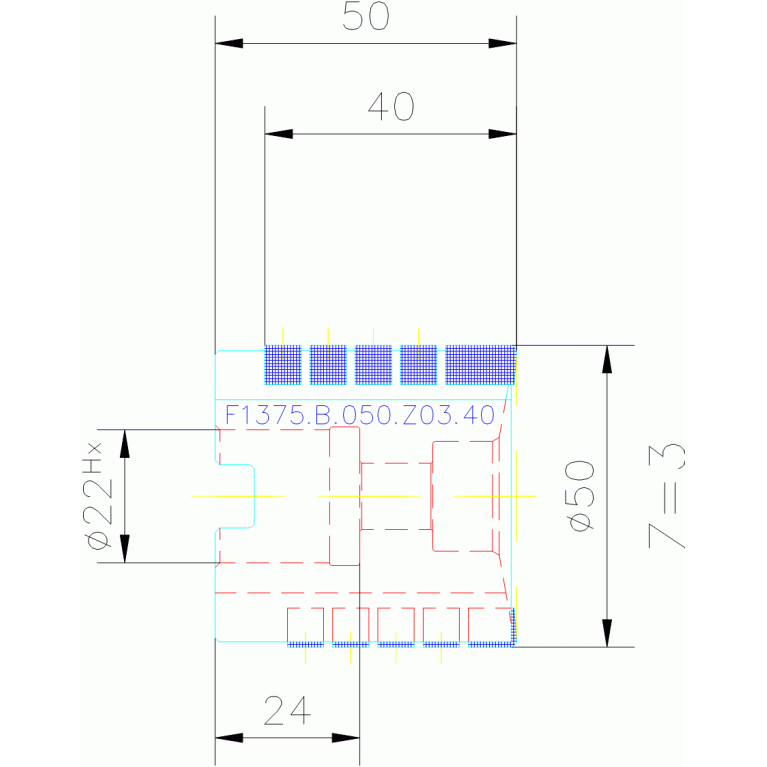

F1375.B.050.Z03.40.K

OAW Overall width

50 mm

RMPX Ramping angle maximum

1.2 Degree

RPMX Rotational speed maximum

6500 1/min

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.43 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
