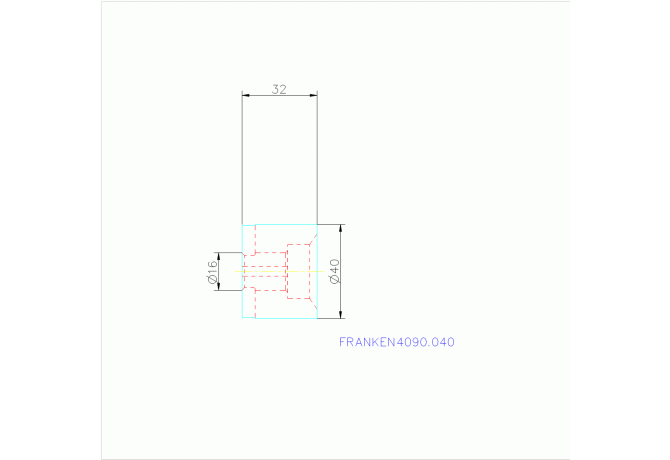

4090.040
4090.040
Артикул:
4090.040
В наличии
Характеристики
BD Body diameter
39.1 mm
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
ohne
COMPC Company code
E - Emuge
CRCLDIN Tool application class
HR
CWN Cutting width minimum
32 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
40 mm
DCCB Counterbore diameter connection bore
23 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/1/2022
DIN
FDA01601300
F71 Number of corner designs
1
FamilyProducts
Shell End Mill
FHA Flute helix angle
25 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
HSS
GRDPRIO Standard designation of the grade main application
HSSE
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
304-02 - Shell mill
LCCB Counterbore depth connection bore
12.5 mm
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA01601300
MILTTY Mill tool type ISO
G - Side end mill (one or more indexable insert pro cutting edge) 90°
Name Identifying order number
4090.040
OAW Overall width
32 mm
STDNO Standard
DIN 1880
Working process
No working processes available
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
