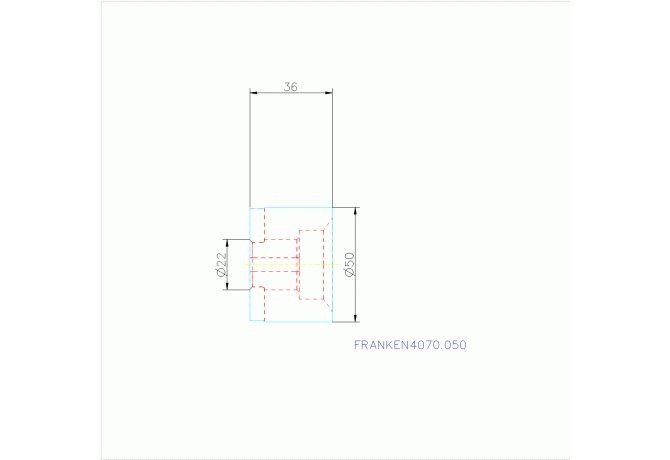

Главная Каталог продукции Toolunited 10 304-02 - Shell mill 4070.050

4070.050

Артикул: 4070.050

В наличии

В корзину

Описание

Характеристики

BD Body diameter

48.9 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

ohne

COMPC Company code

E - Emuge

CRCLDIN Chip removal class

CWN Cutting width minimum

36 mm

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

50 mm

DCCB Counterbore diameter connection bore

30 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2022

DIN

FDA02201300

F71 Number of corner designs

FamilyProducts

Shell End Mill

FHA Flute helix angle

25 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSSE

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

304-02 - Shell mill

LCCB Counterbore depth connection bore

14.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02201300

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

4070.050

OAW Overall width

36 mm

STDNO Standard

DIN 1880

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
