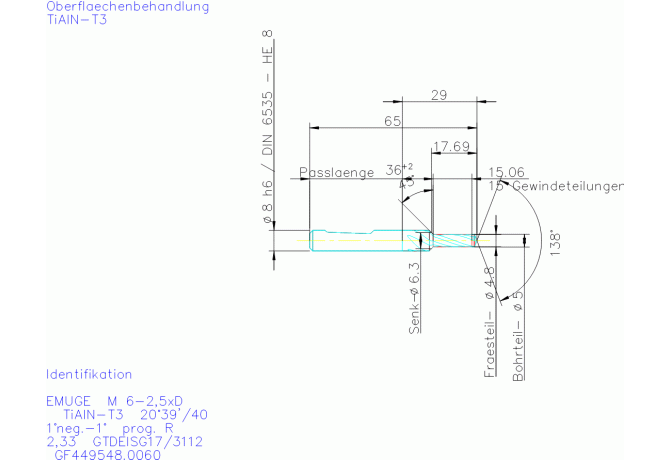

Главная Каталог продукции Toolunited 10 303-11 - Thread end mill with drilling part GF449548.0060

GF449548.0060

Артикул: GF449548.0060

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

TiAlN-T3

COMPC Company code

E - Emuge

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCD Drilling diameter

5 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

4.8 mm

DIN

ZYL00801315

FamilyProducts

thread milling cutter / BGF Z4

FHA Flute helix angle

20.65 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

40 mm

GAMF Rake angle radial

20.65 Degree

GAMP Rake angle axial

0 Degree

GRD2ND Standard designation of the grade 2nd application

HSSE

GRD3RD Standard designation of the grade 3rd application

HSSE

GRDMFG Grade manufacturers designation

HSSE-TiAlN

GRDPRIO Standard designation of the grade main application

HSSE

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-11 - Thread end mill with drilling part

LF Functional length

65 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00801315

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

GF449548.0060

OAL Overall length

65 mm

PRFA Profile included angle

138 Degree

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

6 mm

THFT Thread form type

TP Thread pitch

1 mm

Working process

FSC - Thread milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
