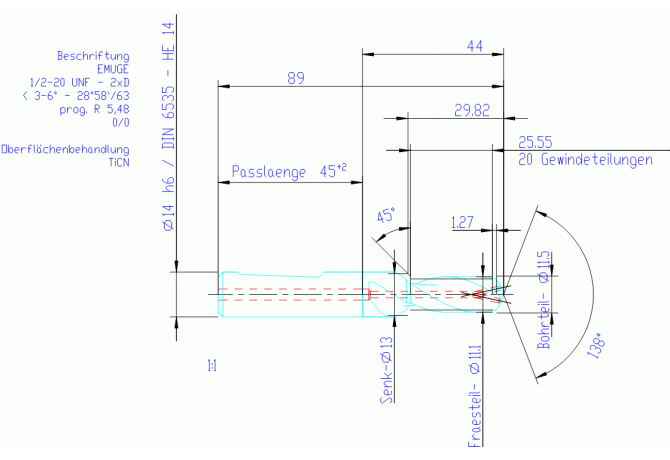

Главная Каталог продукции Toolunited 10 303-11 - Thread end mill with drilling part GF432506.5047

GF432506.5047

GF432506.5047 GF432506.5047

GF432506.5047

Emuge
Артикул: GF432506.5047
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
TiCN
COMPC Company code
E - Emuge
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
11.1 mm
Delivery state valid from
2/1/2024
DIN
ZYL01401315
FamilyProducts
carbide drill thread mill
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
VHM-TiCN
GRDPRIO Standard designation of the grade main application
VHM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LF Functional length
89 mm
LH Head length
29 mm
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01401315
LPR Protruding length
44 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
GF432506.5047
OAL Overall length
89 mm
PRFA Profile included angle
138 Degree
TDIN Thread diameter nominal inch
12.7 in
THFT Thread form type
UNF
TP Thread pitch
1.27 mm
TPI Threads per inch
20 1/in
Working process
FSB - Thrilling (drilling & threading)
WT Weight of item
0.126 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
