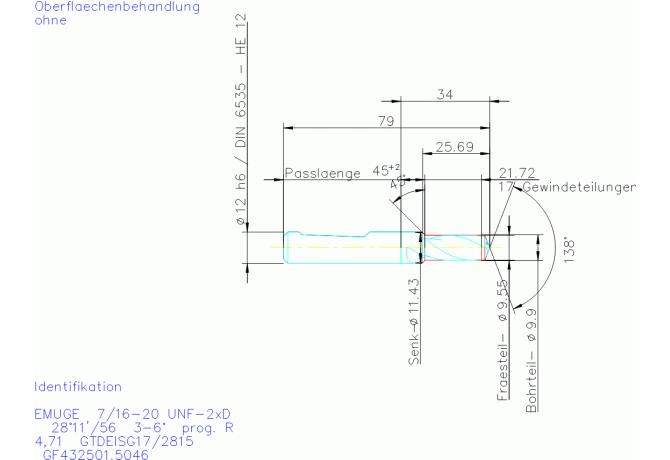

Главная Каталог продукции Toolunited 10 303-11 - Thread end mill with drilling part GF432501.5046

GF432501.5046

Артикул: GF432501.5046

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

E - Emuge

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCD Drilling diameter

9.9 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

9.55 mm

DIN

ZYL01201315

FamilyProducts

thread milling cutter / BGF Z2

FHA Flute helix angle

28.18 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

56 mm

GAMF Rake angle radial

28.18 Degree

GAMP Rake angle axial

4 Degree

GRD2ND Standard designation of the grade 2nd application

HSSE

GRD3RD Standard designation of the grade 3rd application

HSSE

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSSE

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-11 - Thread end mill with drilling part

LF Functional length

79 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201315

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

GF432501.5046

OAL Overall length

79 mm

PRFA Profile included angle

138 Degree

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

11.112 mm

TDIN Thread diameter nominal inch

0.43 in

THFT Thread form type

UNF

TP Thread pitch

1.27 mm

TPI Threads per inch

20 1/in

Working process

FSC - Thread milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
