GF432501.5015
GF432501.5015
Артикул:
GF432501.5015
В наличии

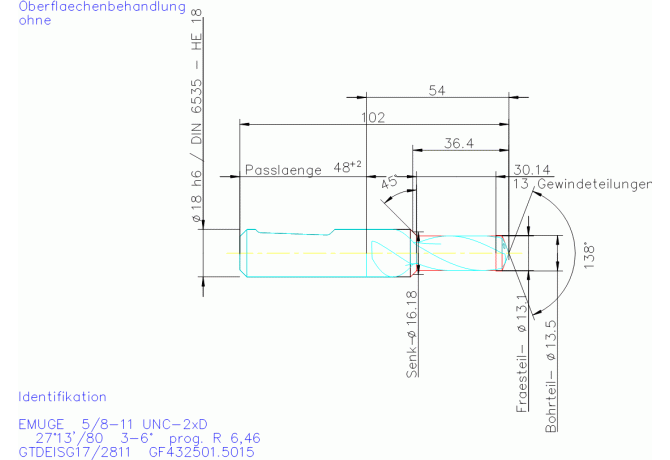

Характеристики
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
E - Emuge
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCD Drilling diameter
13.5 mm
DCONMSLD Shank diameter lower limit
-0.011 mm
DCONMSUD Shank diameter upper limit
0 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
13.1 mm
DIN
ZYL01801315
FamilyProducts
thread milling cutter / BGF Z2
FHA Flute helix angle
27.22 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
80 mm
GAMF Rake angle radial
27.22 Degree
GAMP Rake angle axial
4 Degree
GRD2ND Standard designation of the grade 2nd application
HSSE
GRD3RD Standard designation of the grade 3rd application
HSSE
GRDMFG Grade manufacturers designation
HSSE
GRDPRIO Standard designation of the grade main application
HSSE
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LF Functional length
102 mm
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01801315
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
GF432501.5015
OAL Overall length
102 mm
PRFA Profile included angle
138 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
TD Thread diameter
15.875 mm
TDIN Thread diameter nominal inch
0.62 in
THFT Thread form type
UNC
TP Thread pitch
2.309 mm
TPI Threads per inch
11 1/in
Working process
FSC - Thread milling
WT Weight of item
0.221 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
