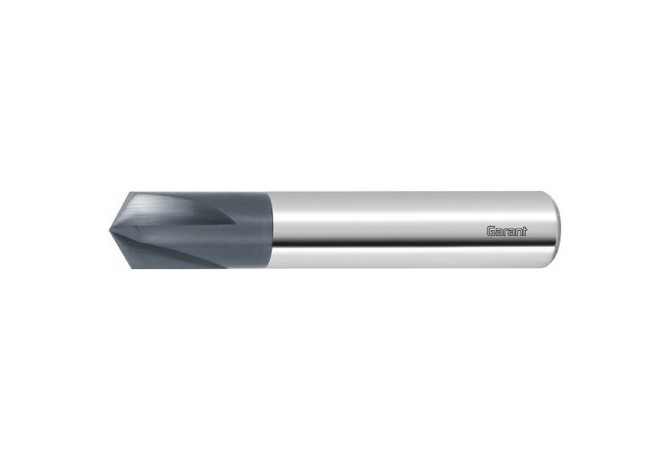

Главная Каталог продукции Toolunited 10 303-10 - Cutting stylus 208092 1

208092 1

Артикул: 208092 1

В наличии

В корзину

Описание

Характеристики

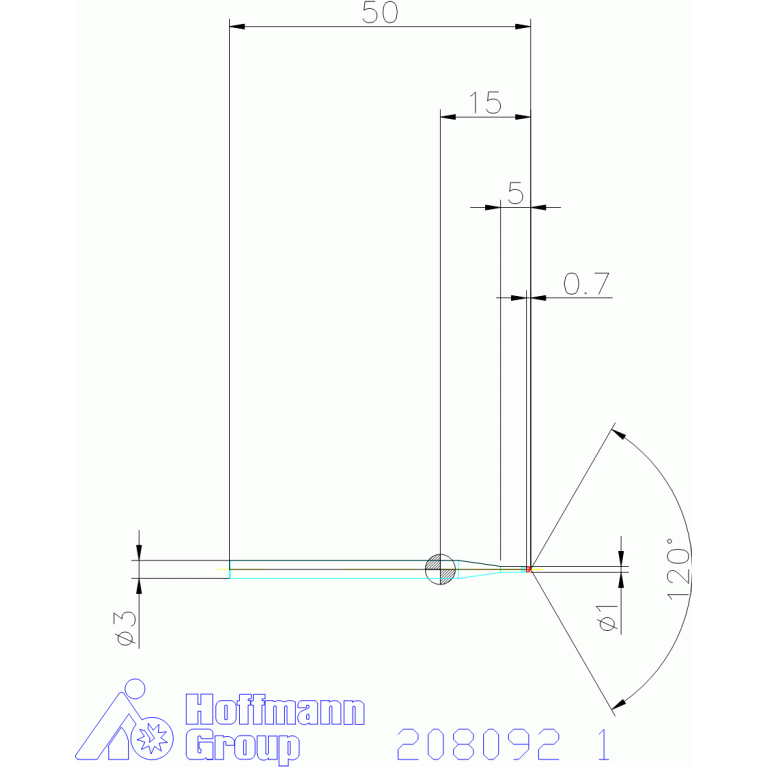

APMX Depth of cut maximum

0.7 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TIALN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

1 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL00300105

FamilyProducts

Solid carbide deburrer

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GAMF Rake angle radial

8 Degree

GAMP Rake angle axial

0 Degree

GRDMFG Grade manufacturers designation

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-10 - Cutting stylus

LH Head length

5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300105

LPR Protruding length

15 mm

LS Shank length

35 mm

Name Identifying order number

208092 1

OAL Overall length

50 mm

PRFA Profile included angle

120 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.005 kg

ZEFF Face effective cutting edge count
