Главная Каталог продукции Toolunited 10 303-09 - Thread end mill TC685-M8-A1E-WB10RC

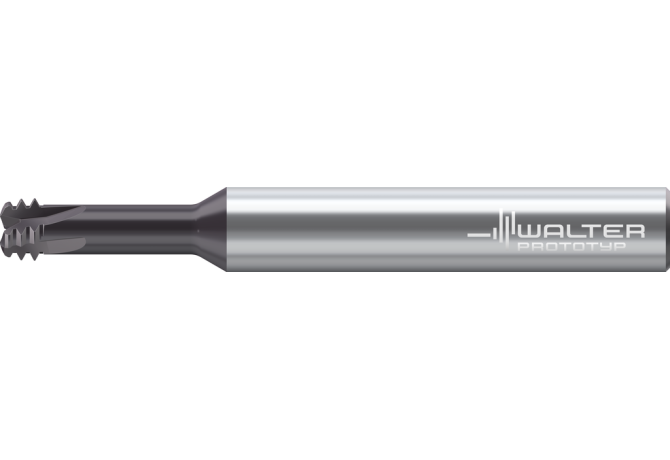

TC685-M8-A1E-WB10RC

Артикул: 7559574

В наличии

В корзину

Описание

Характеристики

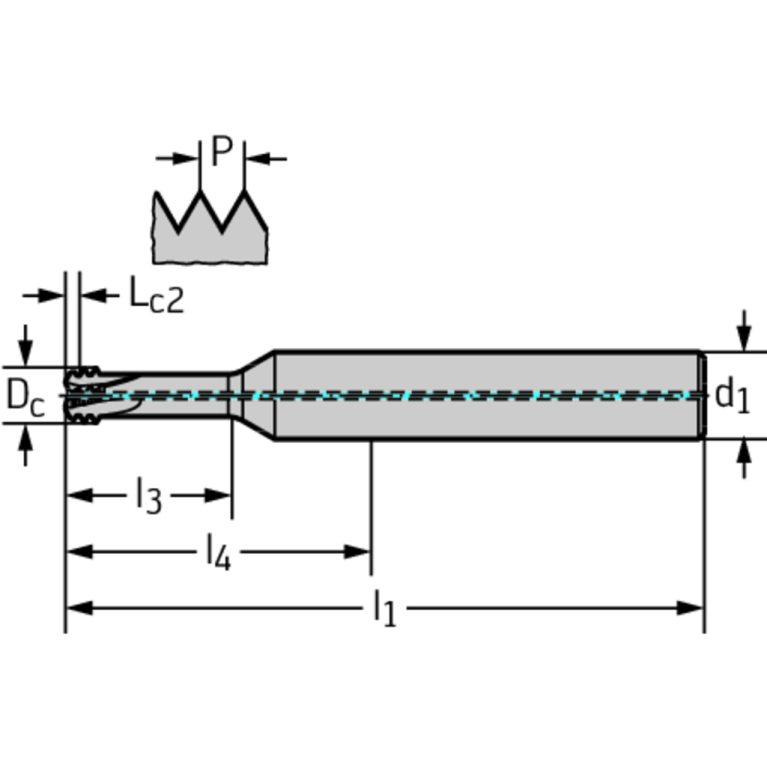

APMX Depth of cut maximum

3.89 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TiAlN

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

6.2 mm

Delivery state valid from

12/1/2023

DIN

ZYL00800115

DN Neck diameter

4.66 mm

FamilyProducts

Orbital thread mill drill TC685

FHA Flute helix angle

13.5 Degree

FHH Flute helix hand

L - Hand of helix left

GAMF Rake angle radial

-13.5 Degree

GRDMFG Grade manufacturers designation

WB10RC

HAND Cutting direction

L - Left

ID Technical product number

7559574

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

ISYC Subclass

303-09 - Thread end mill

LF Functional length

62.501 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL01F8000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

LPR Protruding length

27 mm

LS Shank length

36 mm

Materials

P,K,S,H

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

TC685-M8-A1E-WB10RC

OAL Overall length

63 mm

RPMX Rotational speed maximum

80000 1/min

STDLET Standard letter to the standard number

STDNO Standard

PWZ-NORM

TCDCONMS ISO-tolerance class shank diameter

THFT Thread form type

M60

TP Thread pitch

1.25 mm

Working process

FPR - Profile milling,FSB - Thrilling (drilling & threading),FZI - Circular milling

WT Weight of item

0.042 kg

ZEFP Peripheral effective cutting edge count
