Главная Каталог продукции Toolunited 10 303-09 - Thread end mill GF283129.0050

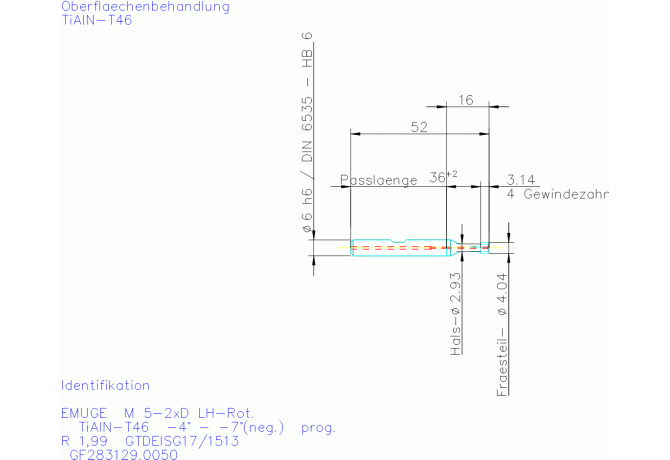

GF283129.0050

Артикул: GF283129.0050

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAlN-T46

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.008 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

4.04 mm

DIN

ZYL00601015

FamilyProducts

thread milling cutter / ZGF-HCUT

FHH Flute helix hand

N - Hand of helix neutral

FHP Flute helix pitch

0 mm

GAMP Rake angle axial

-5 Degree

GRD2ND Standard designation of the grade 2nd application

HSSE

GRD3RD Standard designation of the grade 3rd application

HSSE

GRDMFG Grade manufacturers designation

HSSE-TiAlN

GRDPRIO Standard designation of the grade main application

HSSE

HAND Cutting direction

L - Left

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00601015

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

GF283129.0050

OAL Overall length

52 mm

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

5 mm

THFT Thread form type

TP Thread pitch

0.8 mm

Working process

FSC - Thread milling

WT Weight of item

0.016 kg

ZEFP Peripheral effective cutting edge count
