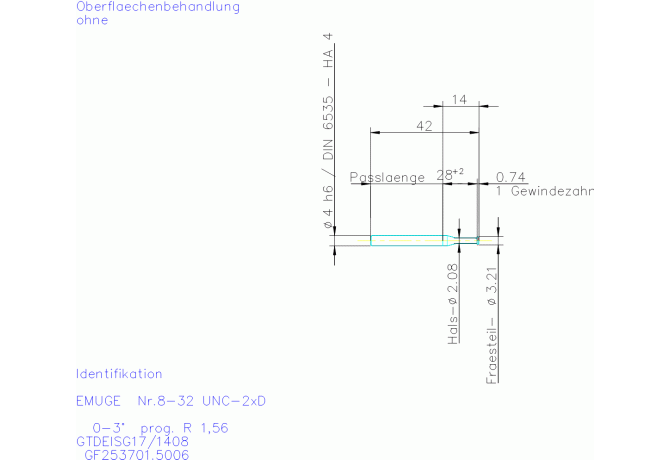

Главная Каталог продукции Toolunited 10 303-09 - Thread end mill GF253701.5006

GF253701.5006

Артикул: GF253701.5006

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

3.21 mm

Delivery state valid from

2/1/2024

DIN

ZYL00400105

FamilyProducts

solid carbide circular thread mills

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LH Head length

8.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

LPR Protruding length

14 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

GF253701.5006

OAL Overall length

42 mm

TDFR Thread diameter nominal fraction

Nr.8-32 in

TDIN Thread diameter nominal inch

4.166 in

THFT Thread form type

UNC

TP Thread pitch

0.794 mm

TPI Threads per inch

32 1/in

Working process

FSC - Thread milling

WT Weight of item

0.007 kg

ZEFP Peripheral effective cutting edge count
