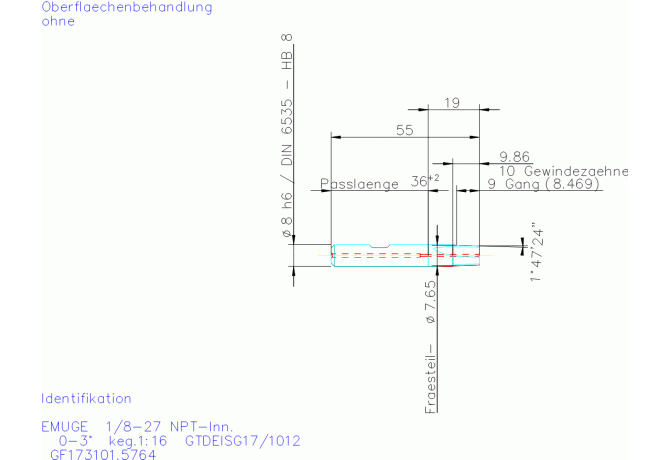

Главная Каталог продукции Toolunited 10 303-09 - Thread end mill GF173101.5764

GF173101.5764

Артикул: GF173101.5764

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

E - Emuge

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

7.65 mm

Delivery state valid from

2/1/2024

DIN

ZYL00801015

FamilyProducts

solid carbide thread milling cutters for tapered threads

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LF Functional length

37 mm

LH Head length

9.863 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00801015

LPR Protruding length

19 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

GF173101.5764

OAL Overall length

55 mm

TDFR Thread diameter nominal fraction

1/8 in

TDIN Thread diameter nominal inch

10.183 in

THFT Thread form type

NPT

TP Thread pitch

0.941 mm

TPI Threads per inch

27 1/in

Working process

FSC - Thread milling

WT Weight of item

0.032 kg

ZEFP Peripheral effective cutting edge count
