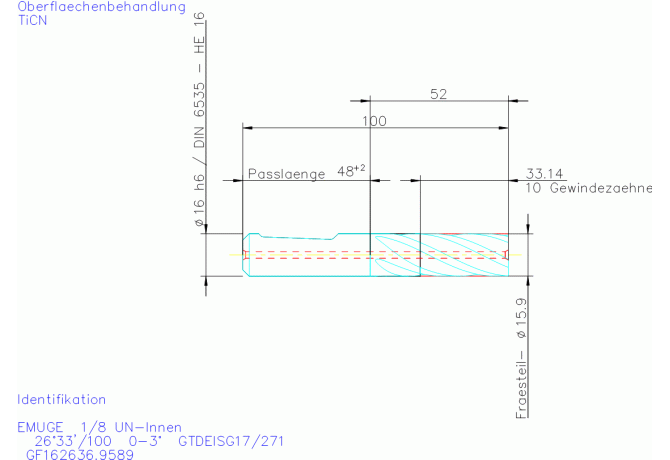

Главная Каталог продукции Toolunited 10 303-09 - Thread end mill GF162636.9589

GF162636.9589

Артикул: GF162636.9589

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

33.14 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TiCN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.011 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

15.9 mm

DIN

ZYL01601315

FamilyProducts

thread milling cutter type long/ GF

FHA Flute helix angle

26.55 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

100 mm

GAMF Rake angle radial

26.55 Degree

GAMP Rake angle axial

1 Degree

GRD2ND Standard designation of the grade 2nd application

HSSE

GRD3RD Standard designation of the grade 3rd application

HSSE

GRDMFG Grade manufacturers designation

HSSE-TiCN

GRDPRIO Standard designation of the grade main application

HSSE

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LF Functional length

100 mm

LH Head length

33.168 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601315

LS Shank length

66.832 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

GF162636.9589

OAL Overall length

100 mm

TCDCONMS ISO-tolerance class shank diameter

TDFR Thread diameter nominal fraction

7/8 in

THFT Thread form type

TP Thread pitch

3.175 mm

TPI Threads per inch

8 1/in

Working process

FSC - Thread milling

ZEFP Peripheral effective cutting edge count
