Главная Каталог продукции Toolunited 10 303-09 - Thread end mill GF162456.9550

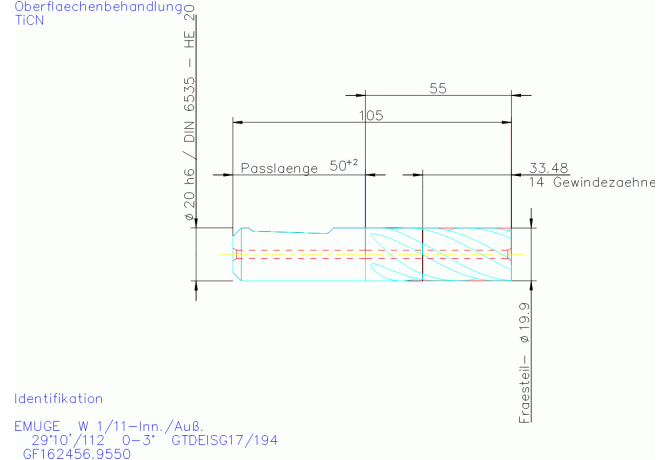

GF162456.9550

Артикул: GF162456.9550

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TiCN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.013 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

19.9 mm

DIN

ZYL02001315

FamilyProducts

thread milling cutter / GF

FHA Flute helix angle

29.17 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

112 mm

GAMF Rake angle radial

29.17 Degree

GAMP Rake angle axial

1 Degree

GRD2ND Standard designation of the grade 2nd application

HSSE

GRD3RD Standard designation of the grade 3rd application

HSSE

GRDMFG Grade manufacturers designation

HSSE-TiCN

GRDPRIO Standard designation of the grade main application

HSSE

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LF Functional length

105 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001315

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

GF162456.9550

OAL Overall length

105 mm

TCDCONMS ISO-tolerance class shank diameter

TDFR Thread diameter nominal fraction

1 in

THFT Thread form type

TP Thread pitch

2.309 mm

TPI Threads per inch

11 1/in

Working process

FSC - Thread milling

WT Weight of item

0.402 kg

ZEFP Peripheral effective cutting edge count
