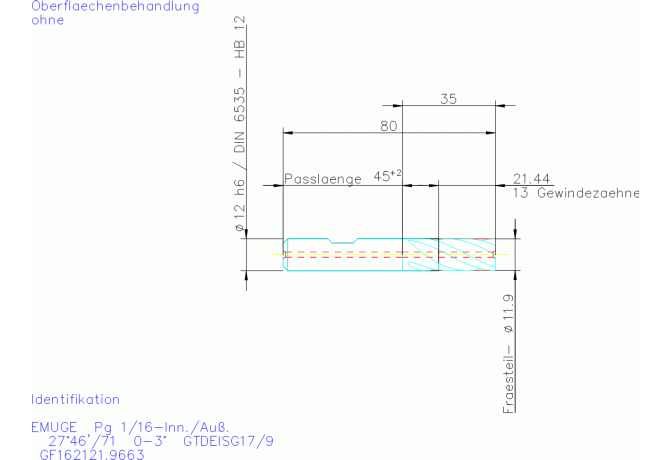

Главная Каталог продукции Toolunited 10 303-09 - Thread end mill GF162121.9663

GF162121.9663

Артикул: GF162121.9663

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

21.438 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.011 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

11.9 mm

DIN

ZYL01201015

FamilyProducts

thread milling cutter / GF

FHA Flute helix angle

27.77 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

71 mm

GAMF Rake angle radial

27.77 Degree

GAMP Rake angle axial

1 Degree

GRD2ND Standard designation of the grade 2nd application

HSSE

GRD3RD Standard designation of the grade 3rd application

HSSE

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSSE

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LH Head length

21.438 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201015

LS Shank length

58.562 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

GF162121.9663

OAL Overall length

80 mm

TCDCONMS ISO-tolerance class shank diameter

THFT Thread form type

TP Thread pitch

1.588 mm

TPI Threads per inch

16 1/in

Working process

FSC - Thread milling

WT Weight of item

0.41 kg

ZEFP Peripheral effective cutting edge count
