Главная Каталог продукции Toolunited 10 303-09 - Thread end mill 46Y-09UNT8RA21-T IN2005

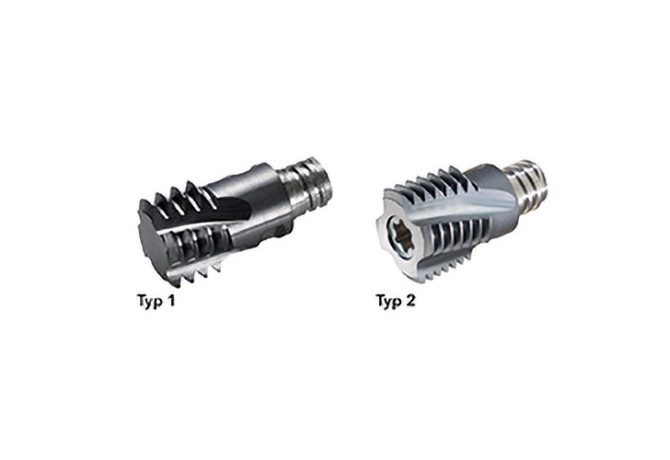

46Y-09UNT8RA21-T IN2005

Артикул: 2928078

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

11.3 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

16 mm

Delivery state

LA - Soon discontinued

DIN

SAI00800105

FamilyProducts

threading Cutter UNC / UNF / UNEF type

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

2928078

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00800105

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

46Y-09UNT8RA21-T IN2005

OAL Overall length

27.95 mm

THFT Thread form type

UNEF

THSZMS Connection thread nominal size machine side

TPI Threads per inch

9 1/in

Working process

No working processes available

WT Weight of item

0.063 kg

ZEFP Peripheral effective cutting edge count
