Главная Каталог продукции Toolunited 10 303-08 - Rounded profile end mill, concave 3281A.003

3281A.003

Артикул: 3281A.003

В наличии

В корзину

Описание

Характеристики

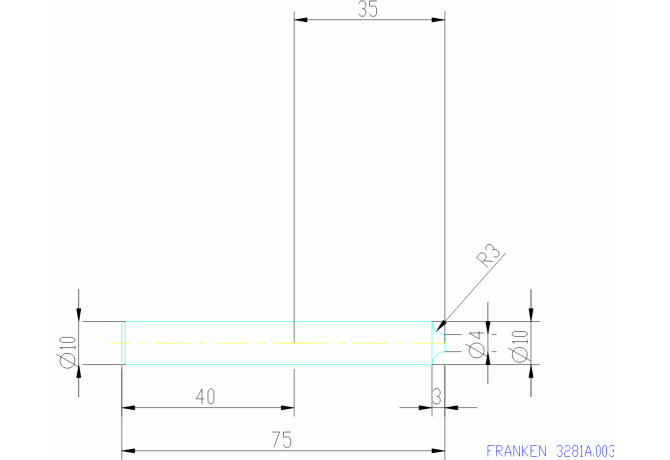

APMX Depth of cut maximum

3 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TIALN

COMPC Company code

E - Emuge

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

4 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

10 mm

Delivery state valid from

10/1/2022

DIN

ZYL01000105

DN Neck diameter

10 mm

FamilyProducts

Corner-Rounding End Mill

GRDMFG Grade manufacturers designation

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-08 - Rounded profile end mill, concave

LF Functional length

75 mm

LH Head length

35 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LPR Protruding length

35 mm

LS Shank length

40 mm

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3281A.003

OAL Overall length

75 mm

PRFRAD Profile radius 1

3 mm

STDNO Standard

DIN 6518

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
