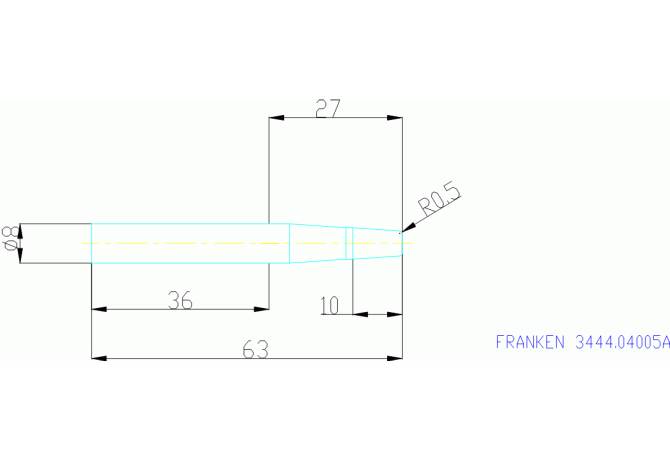

Главная Каталог продукции Toolunited 10 303-07 - Die end mill 3444.04005A

3444.04005A

Артикул: 3444.04005A

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

10 mm

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

5 mm

DCX Cutting diameter maximum

6.399 mm

DIN

ZYL00800105

FamilyProducts

Tapered Torus End Mill

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-07 - Die end mill

LF Functional length

63 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

27 mm

Name Identifying order number

3444.04005A

OAL Overall length

63 mm

PRFA Profile included angle

8 Degree

PRFRAD Profile radius 1

0.5 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

FDR - Rotary milling, turn milling,FFO - Die milling,FPR - Profile milling

WT Weight of item

0.001 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
