Главная Каталог продукции Toolunited 10 303-07 - Die end mill 2678AZ.115010

2678AZ.115010

Артикул: 2678AZ.115010

В наличии

В корзину

Описание

Характеристики

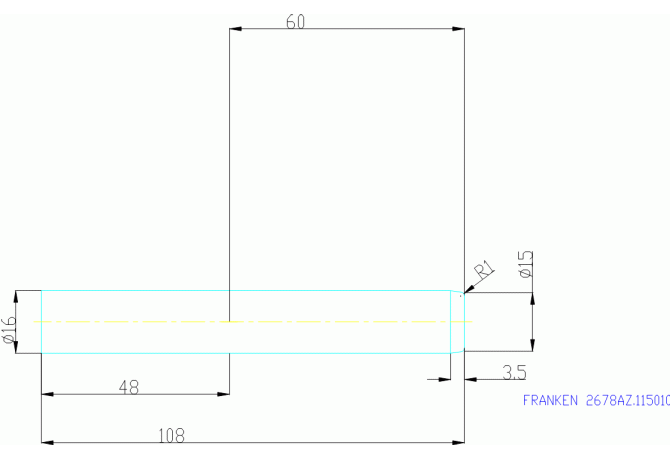

APMX Depth of cut maximum

3.5 mm

COATN Coating

TIALN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

15 mm

DCX Cutting diameter maximum

15.984 mm

DIN

ZYL01600115

FamilyProducts

Tapered Torus End Mill

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-07 - Die end mill

LF Functional length

108 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600115

LPR Protruding length

60 mm

Name Identifying order number

2678AZ.115010

OAL Overall length

108 mm

PRFA Profile included angle

16 Degree

PRFRAD Profile radius 1

1 mm

STDNO Standard

TCDCONMS ISO-tolerance class shank diameter

Working process

FDR - Rotary milling, turn milling,FFO - Die milling,FPR - Profile milling

WT Weight of item

0.001 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
