Главная Каталог продукции Toolunited 10 303-06 - Ball-nosed end mill W1504436

W1504436

Артикул: W1504436

В наличии

В корзину

Описание

Характеристики

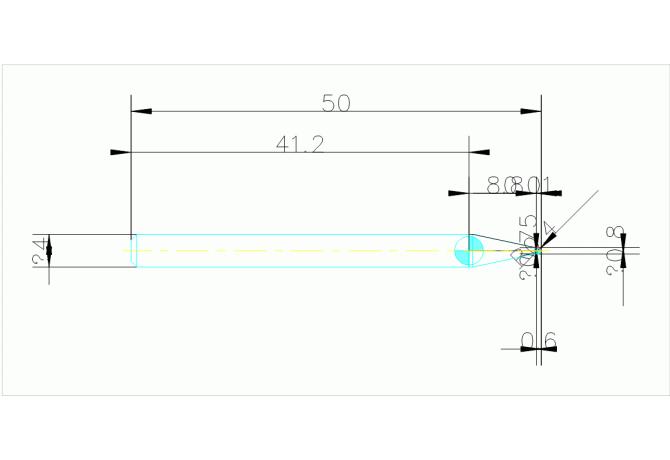

APMX Depth of cut maximum

0.6 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

Multi-SiC layer

COMPC Company code

OSG

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

0.8 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL00400105

DN Neck diameter

0.75 mm

FamilyProducts

OSG PHX-LN-DBT R0,4x1

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

-10 Degree

GAMP Rake angle axial

-5 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LN Neck length

1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

LPR Protruding length

8.8 mm

LS Shank length

41.2 mm

Name Identifying order number

W1504436

OAL Overall length

50 mm

PRFRAD Profile radius 1

0.4 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
