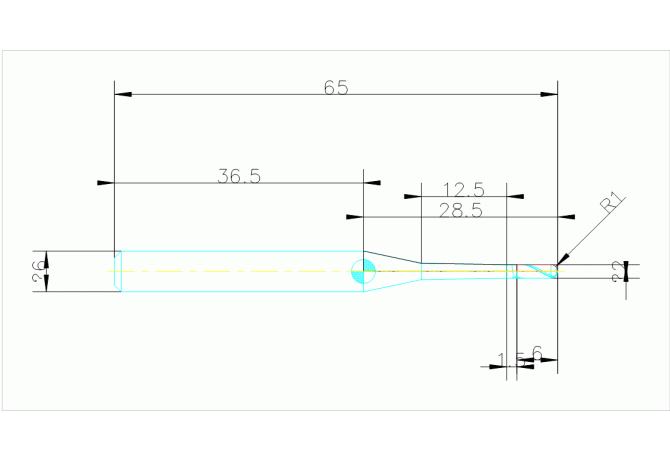

Главная Каталог продукции Toolunited 10 303-06 - Ball-nosed end mill W0900964

W0900964

Артикул: W0900964

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

6 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

OSG

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

2 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL00600105

DN Neck diameter

2 mm

FamilyProducts

OSG PlusLine EPL-PC-EBD R1x0,9°x20

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

6 Degree

GAMP Rake angle axial

6 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LN Neck length

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

28.5 mm

LS Shank length

36.5 mm

Name Identifying order number

W0900964

OAL Overall length

65 mm

PRFRAD Profile radius 1

1 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
